Delock 89048 PCI Express kaart USB-A 3.2 Gen 1 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
11 Stuk(s)
Aantal
Totaal (€ 185,94 / Stuk)
€ 185,94
excl. btw
Gratis verzending*
Incl. 14 dagen retourrecht
Delock PCI Express x4 Card to 4 x external USB 3.0 Quad Channel - Low Profile Form Factor
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal USB-poorten 3.0
4 x
- Aantal USB-poorten 3.0 extern
4 x
- Kenmerken
Incl. Low-Profile slotplaat
- Aansluitingen (uitgang)
USB-A 3.2 Gen 1
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Aantal USB type A 3.1 / 3.2 Gen 1
4 x
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Data transfer snelheid (max)
5 Gbit/s
- Bedrijfstemperatuur (T-T)
0 - 60 °C
- Aantal
1
- Intern
Ja
- Gebruikershandleiding
Ja
Documenten en downloads
Datablad
Datablad 3379711 Delock 89048 PCI Express kaart USB-A 3.2 Gen 1 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379711 Delock 89048 PCI Express kaart USB-A 3.2 Gen 1 PCIe
Omschrijving

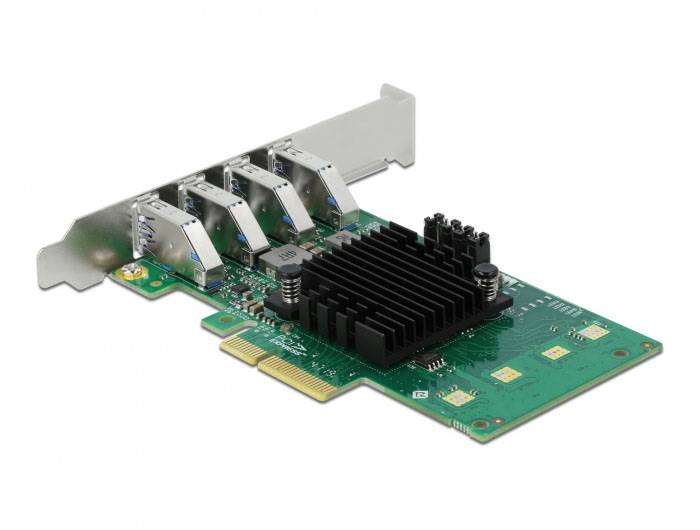

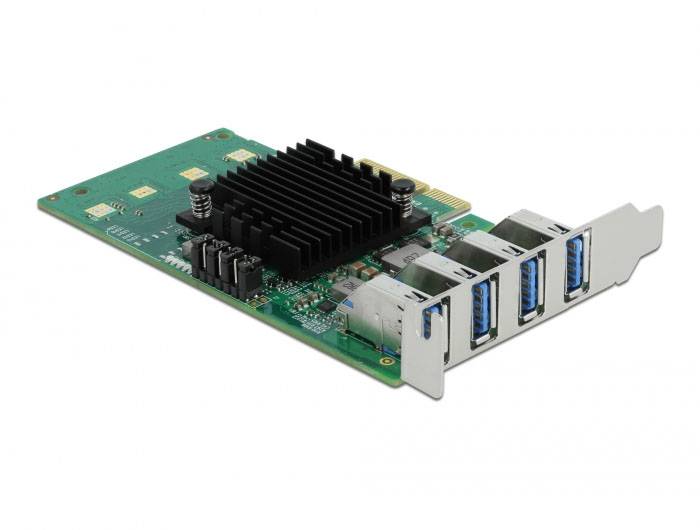

Description The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.
No additional power supply
Due to the on-board 5 V DC power supply control, the PCIe card does not require any additional power supply.

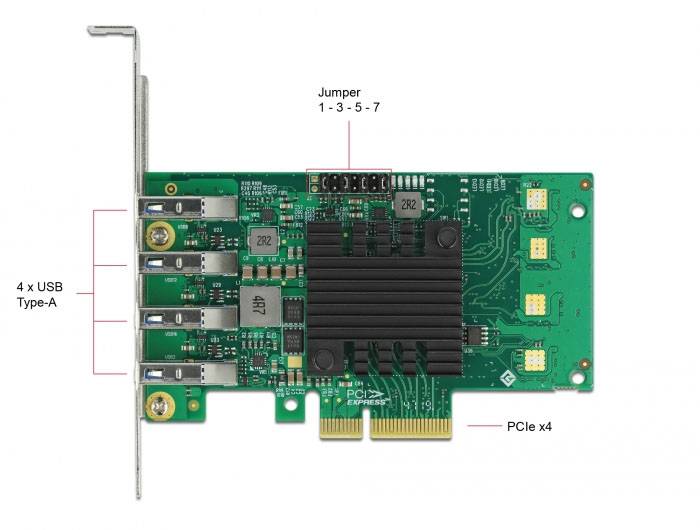

With the help of the four jumpers, the current can be limited to 900 mA or 1.5 A on each USB port. Specification • Connectors:
external: 4 x USB 3.0 Type-A female
internal: 1 x PCI Express x4, V2.0
• Chipset: 4 x Renesas uPD720202
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• 4 x jumper to set 0.9 or 1.5 A output
• 9 x LED indicator
• Operating temperature: 0 °C ~ 60 °C System requirements • Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card USB 3.0

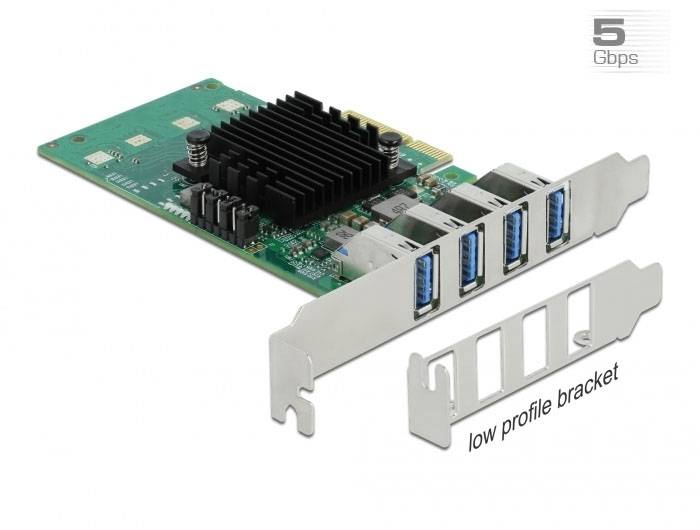

• Low profile bracket
• User manual
