Delock 89365 PCI Express kaart USB-A 3.2 Gen 1 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Aantal
Totaal (€ 140,49 / Stuk)
€ 140,49
excl. btw
Gratis verzending*
Incl. 14 dagen retourrecht
Delock PCI Express x4 Card > 4 x external USB 3.0 Quad Channel
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal USB-poorten 3.0
4 x
- Aantal USB-poorten 3.0 extern
4 x
- Kenmerken
Incl. Low-Profile slotplaat
- Aansluitingen (uitgang)
USB-A 3.2 Gen 1
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Aantal USB type A 3.1 / 3.2 Gen 1
4 x
- Kabeltoepassing
Apparaat (koud)
- Gewicht
0.21
- UKCA
Ja
- Data transfer snelheid (max)
5 Gbit/s
- Intern
Ja
- Gebruiksaanwijzing
Ja
Documenten en downloads
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3378577 Delock 89365 PCI Express kaart USB-A 3.2 Gen 1 PCIe
Omschrijving

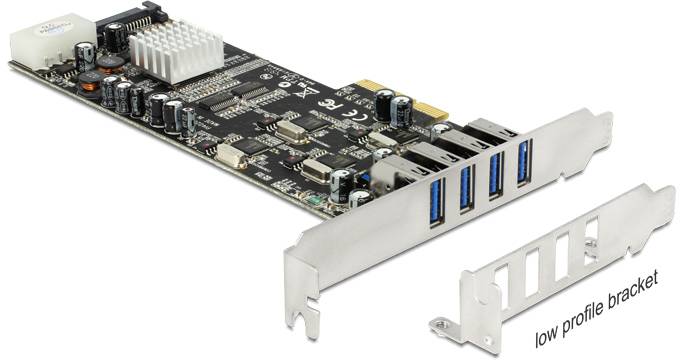

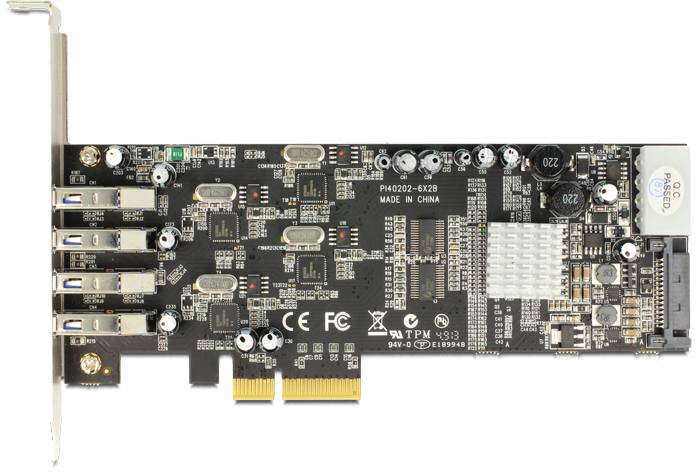

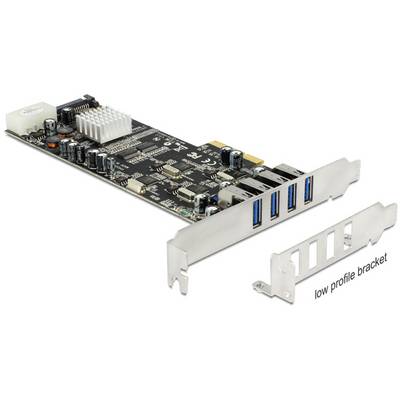

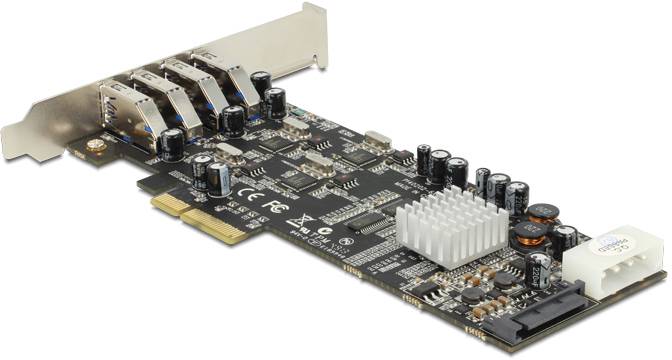

Description The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot. Specification • Connectors:
external:
4 x USB 3.0 Type-A female
internal:
1 x SATA power connector
1 x Molex 4 pin power connector
1 x PCI Express x4, V2.0
• Chipset: 4 x Renesas D720202
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps System requirements • Linux Kernel 2.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Power supply with a free power connector Package content • PCI Express card USB 3.0
• Low profile bracket
• Driver CD
• User manual
