Delock 89446 PCI Express kaart Parallel (IEEE 1284), Serieel (9-pol.) PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Aantal
Totaal (€ 29,74 / Stuk)
€ 29,74
excl. btw
Incl. 14 dagen retourrecht
Delock PCI Express Card to 1 x Serial + 1 x Parallel
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal parallel
1 x
- Aantal serieel
1 x
- Chipset
Sunplus
- Aansluitingen (uitgang)
Parallel (IEEE 1284)
Serieel (9-pol.)
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Data transfer snelheid (max)
0.0144 Gbit/s
- Parallelle poort(en)
1
- Seriële poort(en)
1
- Intern
Ja
- Gebruikershandleiding
Ja
- RS-232
Ja
- Meegeleverde drivers
Ja
- Ondersteunt EPP en ECP
Ja
- Montagebeugels meegeleverd
Ja
Documenten en downloads
Datablad
Datablad 3378705 Delock 89446 PCI Express kaart Parallel (IEEE 1284), Serieel (9-pol.) PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3378705 Delock 89446 PCI Express kaart Parallel (IEEE 1284), Serieel (9-pol.) PCIe
Omschrijving

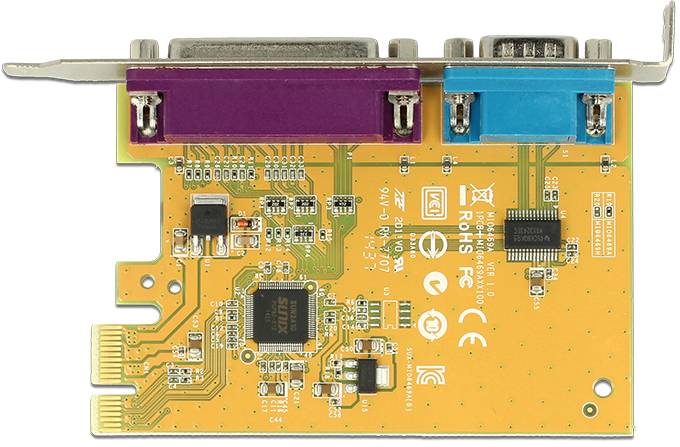

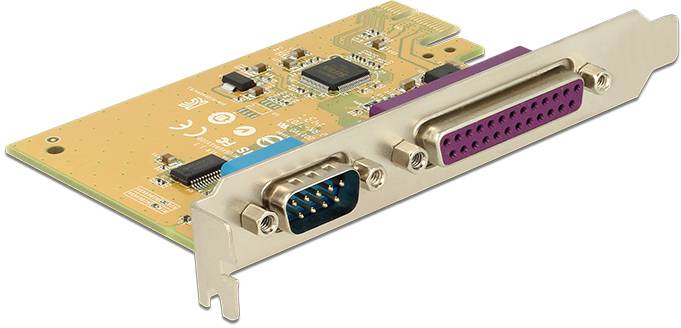

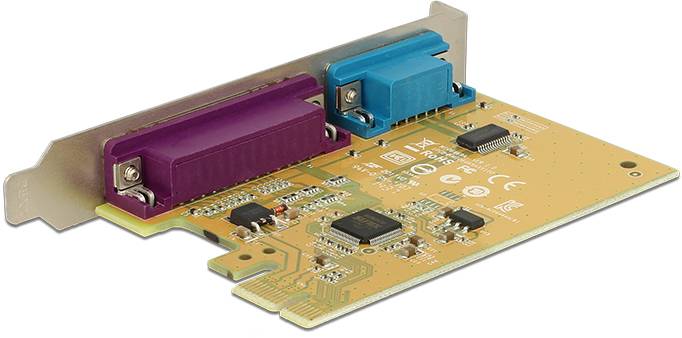

Description The Delock PCI Express card expands a PC by one external serial port and one external parallel port. Different devices such as scanner, printer, mouse etc. can be connected to this card.
Special features
This PCIe card 1 x Serial + 1 x Parallel is Windows Server 2019 WHQL certified Specification • Connector:
external:
1 x serial RS-232 DB9 male
1 x Parallel DB25 female
internal:
1 x PCI Express x1, V2.0
• Chipset: SUN2410
• Serial specification:
• Data transfer rate up to 115.2 Kb/s
• FIFO: 128 byte
• Compatible with 16C950 UART
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• ±15 kV ESD protection for all serial signals meets IEC1000-4-2 standard
• Parallel specification:
• Data transfer rate up to 1.8 MB/s
• FIFO: 16 byte
• SPP, EPP, ECP, BPP compatible to IEEE 1284
• Windows WHQL certified System requirements • Linux Kernel 2.6.x or above
• Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64 / 11
• Windows 10 Enterprise LTSC 2019 / Windows 10 2016 LTSB / Windows 10 S
• Windows Server 2012 / Server 2012R2 / Server 2016 / Server 2019
• PC with one free PCI Express slot Package content • PCI Express card
• Driver CD
• User manual
