Delock 89938 PCI Express kaart RS232 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Aantal
Totaal (€ 41,31 / Stuk)
€ 41,31
excl. btw
Incl. 14 dagen retourrecht
Delock PCI Express Card to 4 x Serial RS-232 with voltage supply
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- SATA, intern
1
- Aantal serieel
4 x
- Kenmerken
Incl. Low-Profile slotplaat
- Aansluitingen (uitgang)
RS232
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Groen
- Aansluiting A
PCIe
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Aantal
1
- Aantal per verpakking
1 Stück(e)
- Intern
Ja
- Datastroombeheer
Ja
- Baud snelheid
230.4 Kbit/s
- Gebruiksaanwijzing
Ja
- Aantal Internal SATA ports
1
- Montagebeugels meegeleverd
Ja
Documenten en downloads
Datablad
Datablad 3379721 Delock 89938 PCI Express kaart RS232 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379721 Delock 89938 PCI Express kaart RS232 PCIe
Omschrijving
Description

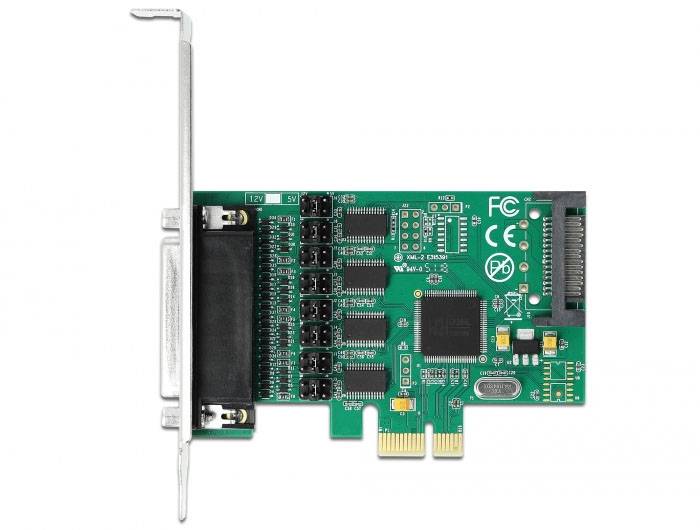

The PCI Express card by Delock expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V.

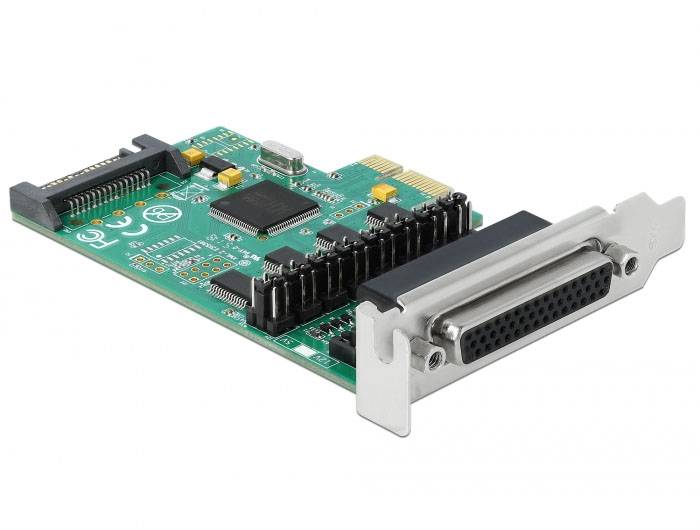

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Specification
• Connectors:
external:
1 x DB44 female

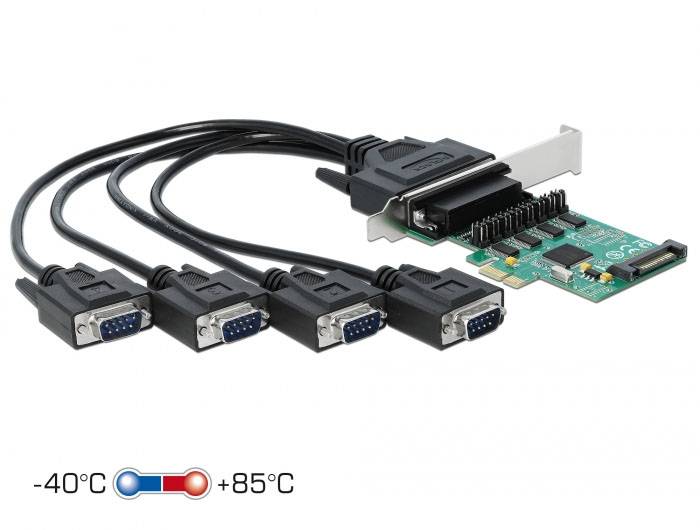

connecting cable: DB44 male > 4 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V1.1
1 x SATA 15 pin plug
• Chipset: WCH384L
• Data transfer rate up to 460.8 Kbps
• FIFO: 256 byte
• Databits: 4, 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Compatible with 16C950 UART
• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)
• Electrical power per port: 10 watt (5 V / 2 A)
• Electrical power per port: 24 watt (12 V / 2 A)
• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Cable length incl. connectors: ca. 35 cm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCI Express card
• Low profile bracket
• 1 serial connecting cable
• Driver CD
• User manual
