Delock 89999 PCI Express kaart WiFi PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
6 Stuk(s)
Aantal
Totaal (€ 44,62 / Stuk)
€ 44,62
excl. btw
Gratis verzending*
Slechts 6 Stuk(s) beschikbaar

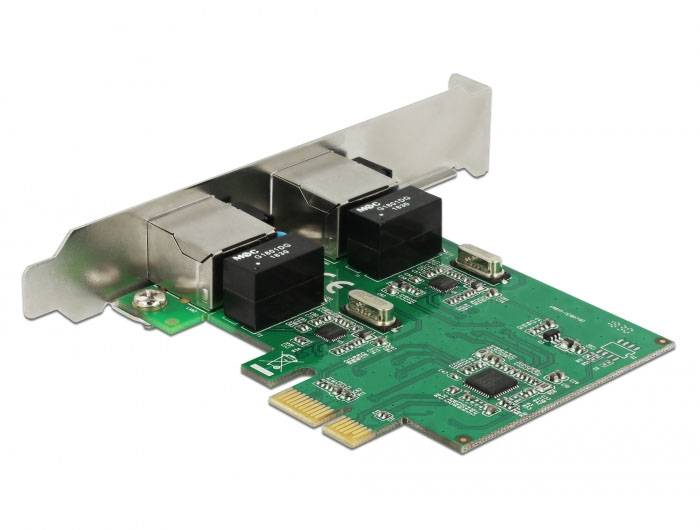

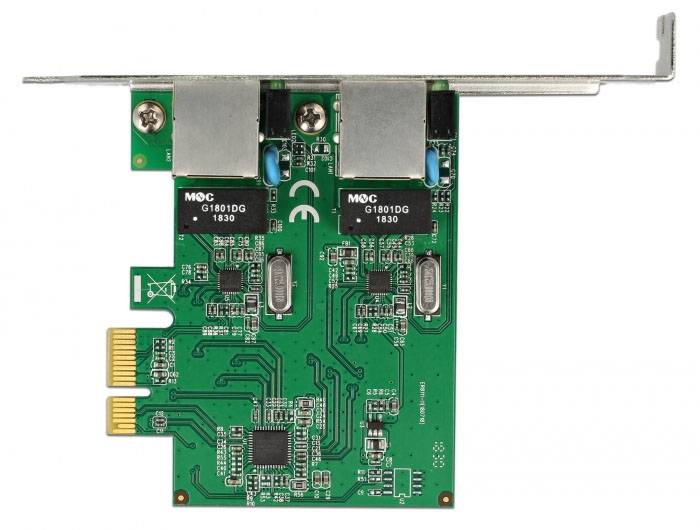

Delock PCI Express x1 Card 2 x RJ45 Gigabit LAN RTL8111
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- 10/100 Mbit/s-poorten
2 x
- 10/100/1000 Mbit/s
2 x
- Aansluitingen (uitgang)
WiFi
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Groen
- Kabeltoepassing
Apparaat (koud)
- Interfaces
WiFi
- Toepassingsbereik
PC's
- UKCA
Ja
- Maximale overdrachtssnelheid van gegevens
1000 Mbit/s
- Ethernet LAN
Ja
- Intern
Ja
- Wake-on-LAN
Ja
- Gebruikershandleiding
Ja
Documenten en downloads
Datablad
Datablad 3378998 Delock 89999 PCI Express kaart WiFi PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3378998 Delock 89999 PCI Express kaart WiFi PCIe
Omschrijving
Description The PCI Express card by Delock offers two network ports with a data transfer rate up to 1000 Mbps. Specification • Connectors:
external: 2 x Gigabit LAN RJ45 jack
internal: 1 x PCI Express x1, V1.1
• Chipset: Realtek RTL8111H, ASMedia ASM1182e
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
PCI Express x1 up to 2.5 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN) System requirements • Linux Kernel 3.10 or above
• Mac OS 10.5 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot Package content • PCI Express card
• Low profile bracket
• Driver CD
• User manual
external: 2 x Gigabit LAN RJ45 jack
internal: 1 x PCI Express x1, V1.1
• Chipset: Realtek RTL8111H, ASMedia ASM1182e
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
PCI Express x1 up to 2.5 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN) System requirements • Linux Kernel 3.10 or above
• Mac OS 10.5 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot Package content • PCI Express card
• Low profile bracket
• Driver CD
• User manual
