Delock 90046 PCI Express kaart RS232 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
39 Stuk(s)
Aantal
Totaal (€ 20,65 / Stuk)
€ 20,65
excl. btw
Incl. 14 dagen retourrecht
Delock PCI Express Card to 2 x Serial RS-232
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal serieel
2 x
- Kenmerken
Incl. Low-Profile slotplaat
- Aansluitingen (uitgang)
RS232
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Data transfer snelheid (max)
0.0009216 Gbit/s
- Bedrijfstemperatuur (T-T)
0 - 70 °C
- Seriële poort(en)
2
- Aantal per verpakking
1 Stück(e)
- Intern
Ja
- Datastroombeheer
Ja
- Gebruikershandleiding
Ja
- Meegeleverde drivers
Ja
- Montagebeugels meegeleverd
Ja
Documenten en downloads
Datablad
Datablad 3379724 Delock 90046 PCI Express kaart RS232 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379724 Delock 90046 PCI Express kaart RS232 PCIe
Omschrijving

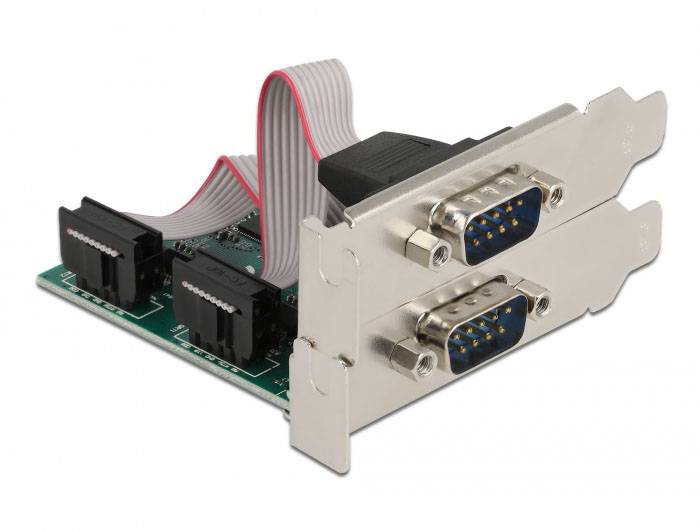

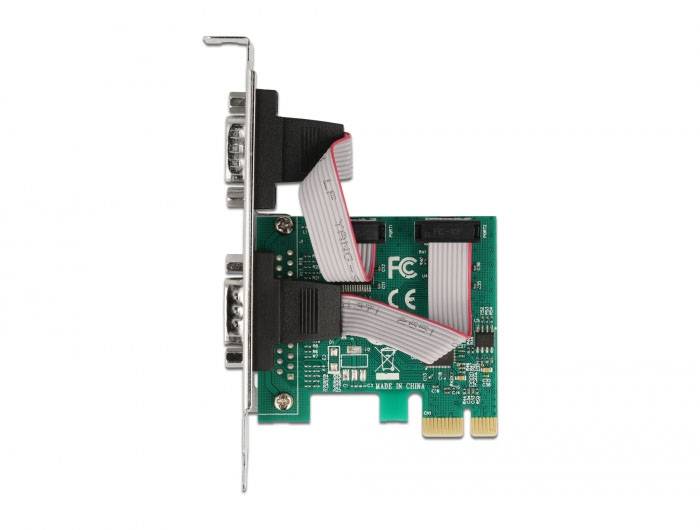

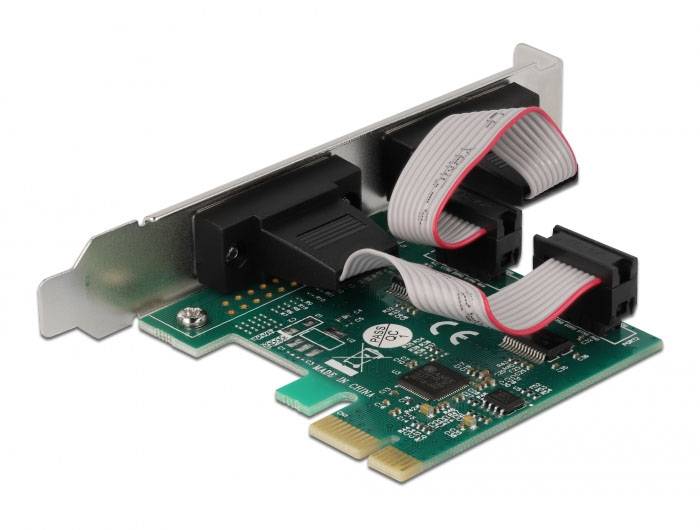

Description The PCI Express card by Delock expands a PC by two external serial ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

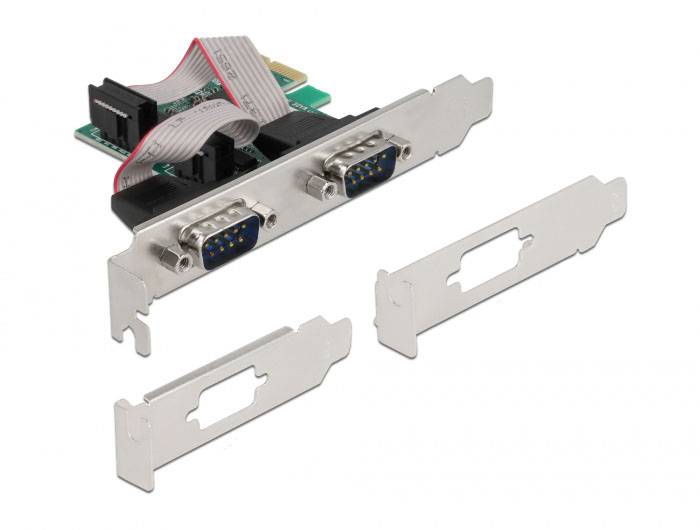

Low Profile Form Factor
By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC. Specification • Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Data transfer rate up to 921.6 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C System requirements • Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot Package content • PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
