Delock 90410 PCI Express kaart RS232 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Aantal
Totaal (€ 20,65 / Stuk)
€ 20,65
excl. btw
Incl. 14 dagen retourrecht
Delock PCI Express Card to 4 x Serial RS-232
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal serieel
4 x
- Kenmerken
Incl. Low-Profile slotplaat
- Aansluitingen (uitgang)
RS232
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Groen
- Aansluiting A
PCIe
- Diepte
82 mm
- Hoogte
16 mm
- Breedte
61 mm
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Data transfer snelheid (max)
0.0001152 Gbit/s
- Bedrijfstemperatuur (T-T)
-40 - 85 °C
- Seriële poort(en)
4
- Aantal
1
- Aantal per verpakking
1 Stück(e)
- Intern
Ja
- Datastroombeheer
Ja
- Gebruikershandleiding
Ja
- Meegeleverde drivers
Ja
- Relatieve vochtigheid in bedrijf (V-V)
0 - 95 %
- Montagebeugels meegeleverd
Ja
Documenten en downloads
Datablad
Datablad 3379750 Delock 90410 PCI Express kaart RS232 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379750 Delock 90410 PCI Express kaart RS232 PCIe
Omschrijving

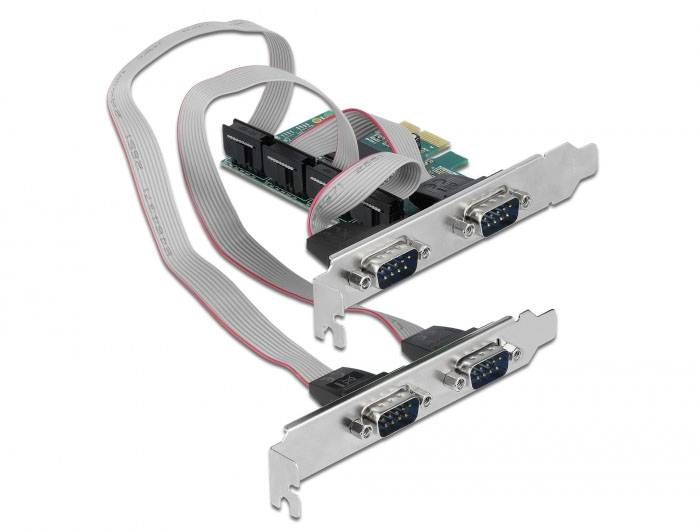

Description The PCI Express card by Delock expands a PC by four external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

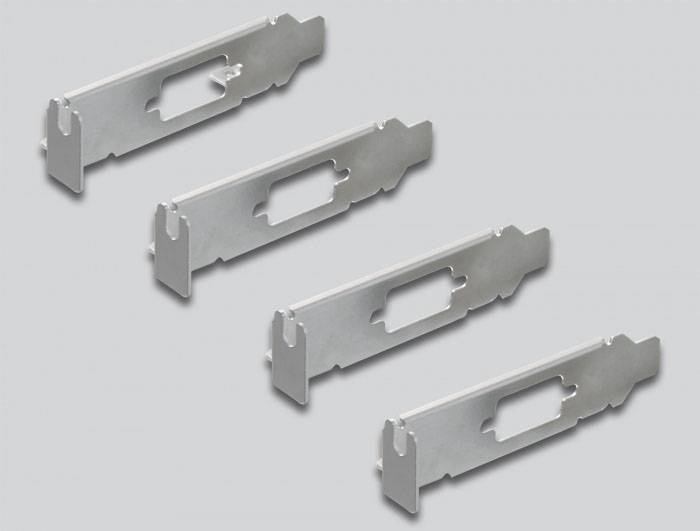

Low Profile Form Factor
By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC. Specification • Connectors:
external:
2 x serial RS-232 DB9 male
2 x serial RS-232 DB9 male (separate rear bracket)
internal:
1 x PCI Express x1, V1.1

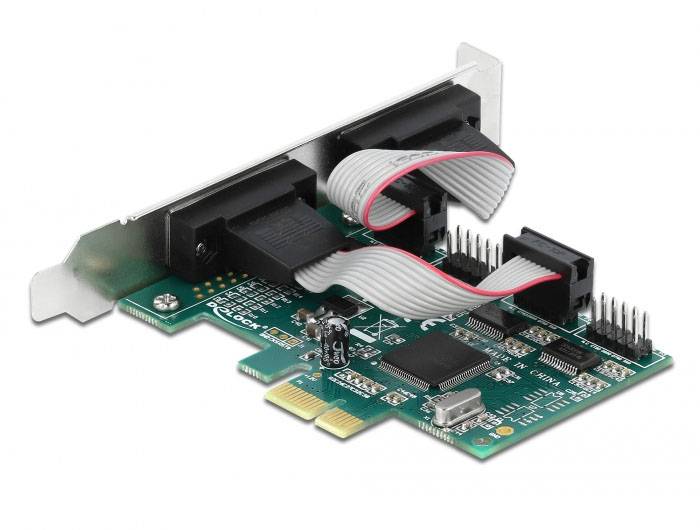

• Chipset: WCH CH384L
• Compatible with UART 16C550, 16C552, 16C554
• Data transfer rate up to 115.2 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 82 x 61 x 16 mm System requirements • Linux Kernel 3.18 or above
• Windows Server 2012 R2/Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot and one rear slot Package content • PCI Express card
• 4 x low profile bracket
• Driver CD
• User manual
