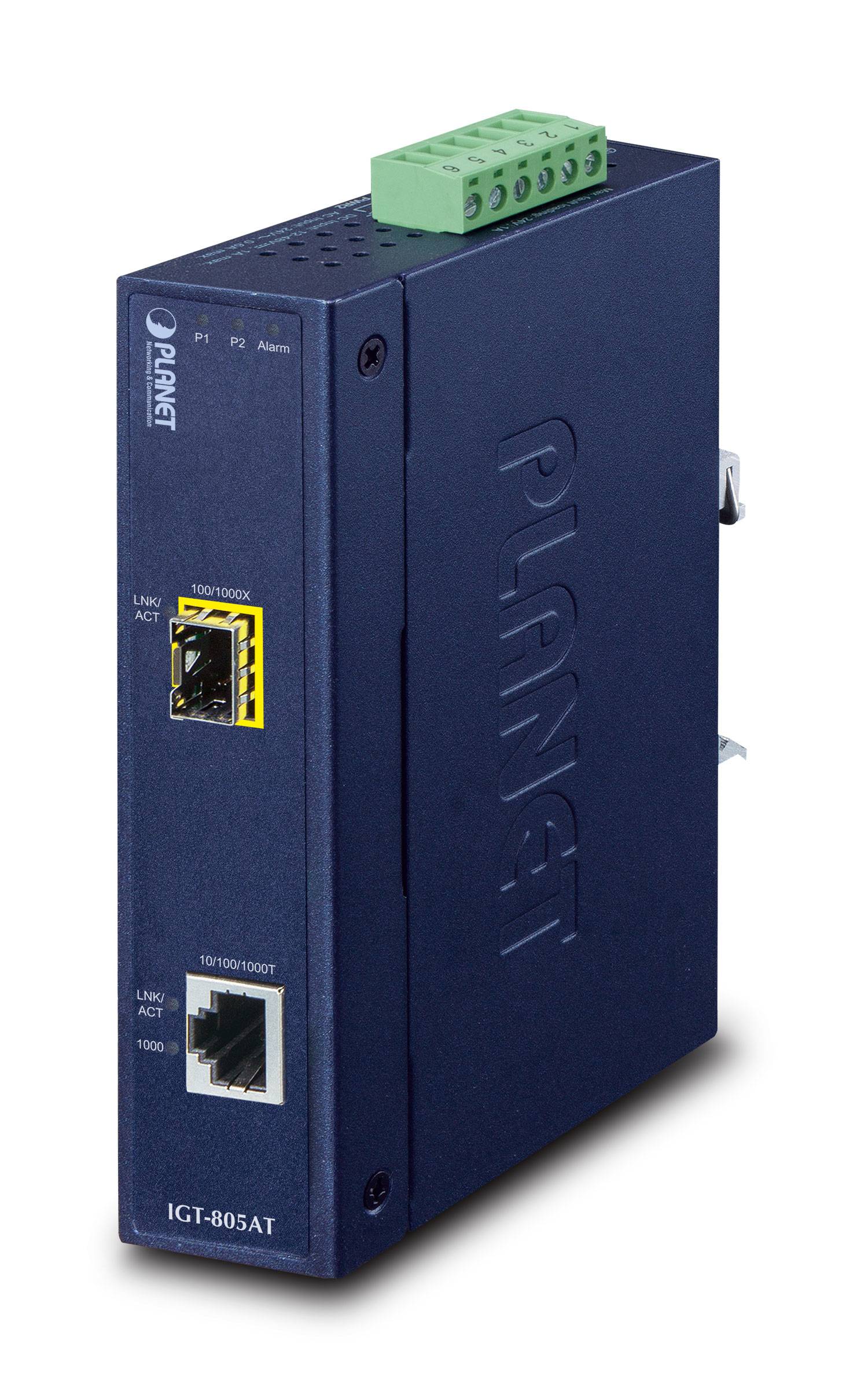

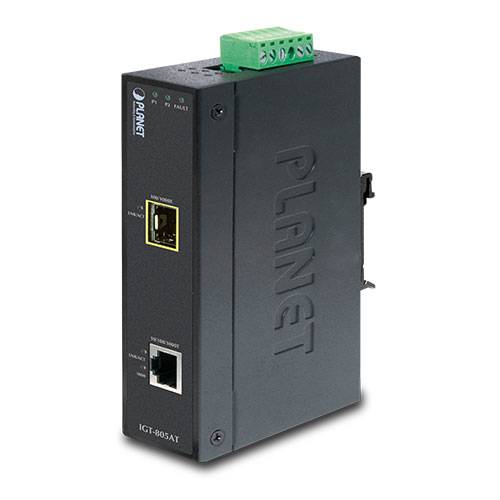

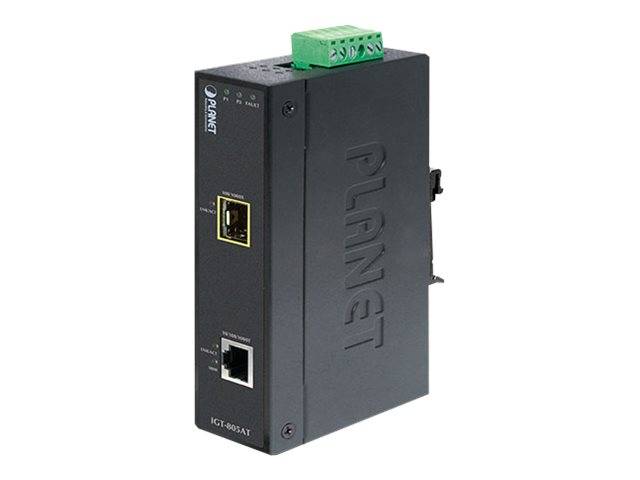

Planet IGT-805AT Mediaconverter LAN 10/100/1000 MBit/s 1 GBit/s

1-poorts 10/100/1000BASE-T RJ45 met auto MDI /
MDI-X function 1 SFP interface,
100/1000BASE-X Dual-modus (auto Detection)   Layer
2 functies IEEE 802.3 /
802.3u / 802.3ab / 802.3z Ethernet standard compliant
supports auto-negotiation and 10/100Mbps half /
full duplex en 1000Mbps full duplex mode-prevents
packet loss with back pressure (half-duplex) en
IEEE 802.3x pause frame flow control (full-duplex)
9K Jumbo frame size support LFP function support
Automatic address learning and address
industriële case /
installatie Slim-type IP30 metalen case DIN rail
en wandbevestiging design redundant Power design - 12 tot 48 V DC,
redundante Power met polarity reverse protect
function - AC 24V Power adapter acceptable support
EFT protection for 6000 VDC voor Power line support br/ <>6000 VDC Ethernet ESD protection -40 to 75 degrees
C operationele temperatuur   flexibele,
Reliable and Industrial-grade Network Distance
Extension Solution PLANET IGT-805AT is an Industrial
Gigabit media converter providing non-blocking
wire-speed performance and great flexibility for
Gigabit Ethernet extension in harsh industrial environment.
IT is equipped with one 10/100/1000BASE-T RJ45
copper and one 100/1000BASE-X SFP fiber optic
interface delivered in an IP30 rugged Strong case
with redundant Power systeem.
de IGT-805AT is goed bedoeld voor toepassingen
in deploying surveillance system,
and security control and wireless service in climatically
demanding environments with wide temperature range
from -40 to 75 degrees C.
with 9K Jumbo frame feature support, de IGT-805AT
kan extreem grote bedragen van data-overdracht
in een secure topologie linking to a backbone or
high-Power servers gebruiken.
   Fiber-Optic Link Capability Enables Extension
of Network Deployment de SFP-sleuf van de IGT-805AT
is compatibel met 100BASE-FX en 1000BASE-SX /
LX / WDM through SFP (Small Form factor Pluggable)
fiber-optic transceivers.
The fiber optic uplink capability guarantee the
throughput to all nodes hoked into the network
and the Gigabit Ethernet-distance can be extended
from 550 meters (multi-mode fiber cable) to 10/20/30/40/50/60/70/120
kilometer (single-mode fiber cable),
and the Fast Ethernet-distance can be extended
from 2km (multi-mode fiber cable) to 20/40/60
kilometer (single-mode fiber cable).
IT is the ideaal product for applications within
the factory data centres and distributions.
   Enhanced Smart Management features de IGT-805AT
provides auto MDI/MDI-X on its TP port and built-in
link fault pass-through function (LFP).
The LFP function includes link Loss carry Forward
(LLCF) and Link Loss Return (LLR),
both of which can immediately alarm administrators
the problem of the link media and provide efficient
solution to monitoring the net.
LLCF means when a device connected to the converter
and the TP line less the link,
the converter’s fiber port will disconnect the
link of transmission.
LLR means when a device connected to the converter
and the fiber line less the link,
the converter’s fiber port will disconnect the
link of transmission.
Therefore, the IGT-805AT greatly supports the
administrators to manage the network efficiently.
   Environmentally hardened design The IGT-805AT
is equipped with the slim-type IP30 metal case
for easy deployment in heavy Industrial Demanding environments.
met IP30 industrial case protection, de IGT-805AT
provides a high level of immunity against electromagnetic <>
are usually found on plant floors or in curbside br/ traffic <>control cabinets.
beenbaar om te functioneren onder het temperatuurbereik
van -40 tot 75 graden Celsius,
de IGT-805AT kan worden geplaatst in vrijwel elk diffusion environment.
de IGT-805AT dus alllows either DIN rail or wall
mounting for efficient use of cabinet space.
   Convenient and Reliable Power System to enhance
the operation reliability and flexibility,
the IGT-805AT is equipped with two DC Power input
connectoren voor redundante Power supply installatie.
IT dus ook van toepassing op geïntegreerde Power supply source
met wide-ranging voltages (12 tot 48 V DC of 24 V
AC) voor wereldwijd hoge <>beschikbaarheid toepassingen br/ aanvraag Dual of back-up Power inputs.

De teksten voor dit artikel zijn automatisch vertaald.
