Uitgangsniveau voor elk frequentiebereik afzonderlijk regelbaar
Scheidingsfrequentie Low/Mid en Mid/High regelbaar
Technische specificaties
Voeding: 230 V AC, 50 Hz
Totale aansluitwaarde: 20 W
Flanksteilheid: 24 dB/octaaf
Bedrijfsfuncties: 3-weg stereo
Ingangsimpedantie: 10/20 kOhm (asym./sym.)
Uitgangsimpedantie: 300/150 kOhm (asym./sym.)
Aansluitbussen: XLR
Signaal-/ruisverhouding: >100 dB
THD: 0,05%
Crosstalk: >80 dB, -3 dB
Scheidingsfrequentie Low/Mid: 80 Hz - 920 kHz
Scheidingsfrequentie Mid/High: 800 Hz - 9,2 kHz
Ingangsregeling: - ~ tot + 6 dB
Low Cut: 40 Hz, -3 dB
Fasecorrectie: 0-180°
Afmetingen (bxdxh): 483 x 187 x 48 mm
Gewicht: 3,3 kg
Verzendgewicht: 2,84 kg
Soortnaam
19 inch frequentiewissel
Aantal kanalen
3-weg triaxiaal
Interfaces
XLR-ingang
XLR-uitgang
Breedte
48.3 cm
Diepte
18.7 cm
Hoogte
4.8 cm
Afm.
(b x h x d) 48.3 x 4.8 x 18.7 cm
Gewicht
3.3 kg
Varianten(Alle gegevens zijn excl. btw en excl verzendkosten)
Aantal kanalen
Interfaces
Omnitronic XO-300 3-weg triaxiaal 19 inch frequentiewissel
1529923
Dit product
3-weg triaxiaal
XLR-ingangXLR-uitgang
Omnitronic XO-230 2-weg coaxiaal 19 inch frequentiewissel
1529922
2-weg coaxiaal
XLR-uitgangJackplug-uitgang 6.3 mmJackplug-ingang 6.3 mm
Documenten en downloads
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 1529923 Omnitronic XO-300 3-weg triaxiaal 19 inch frequentiewissel
Omschrijving

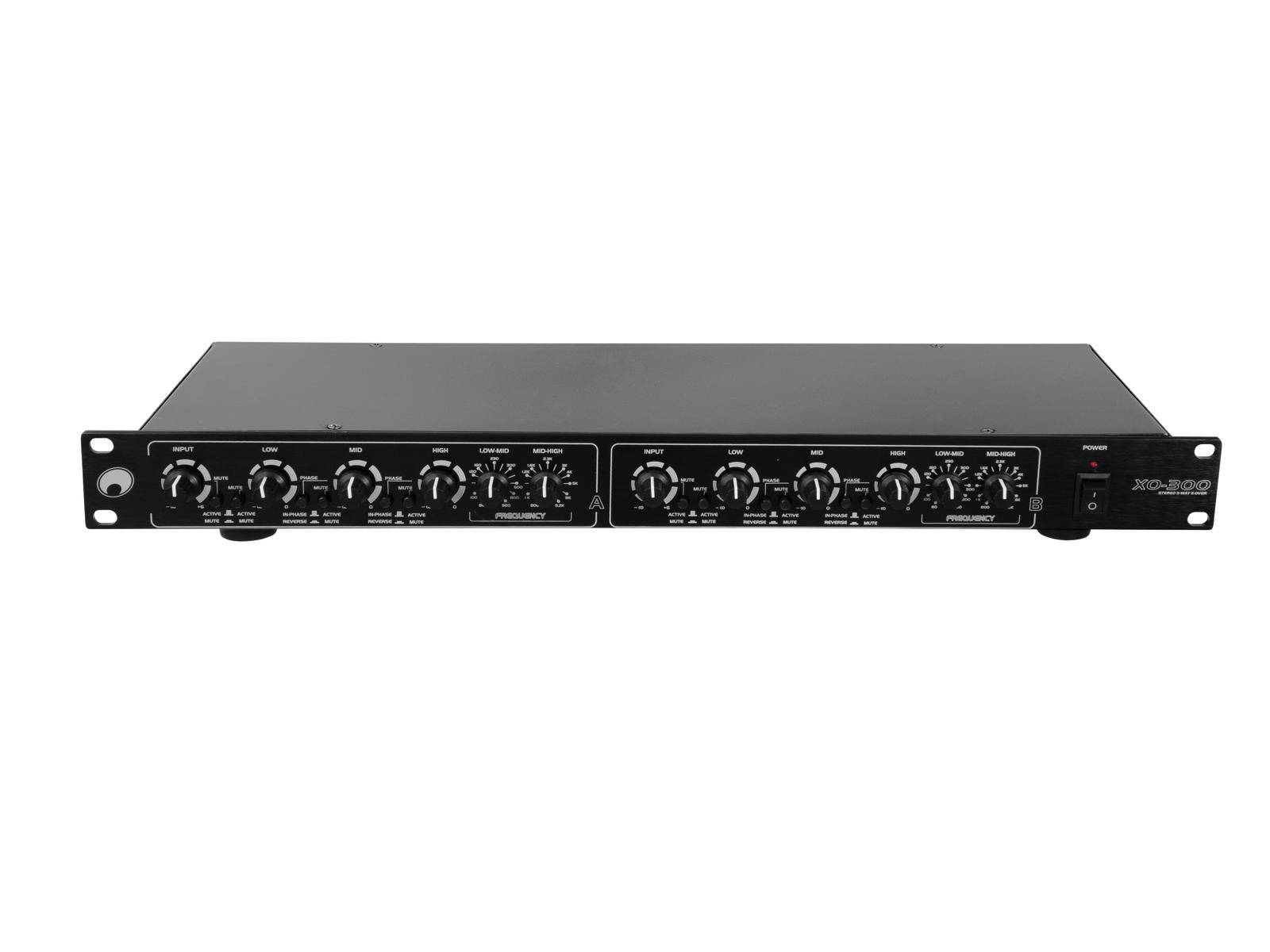

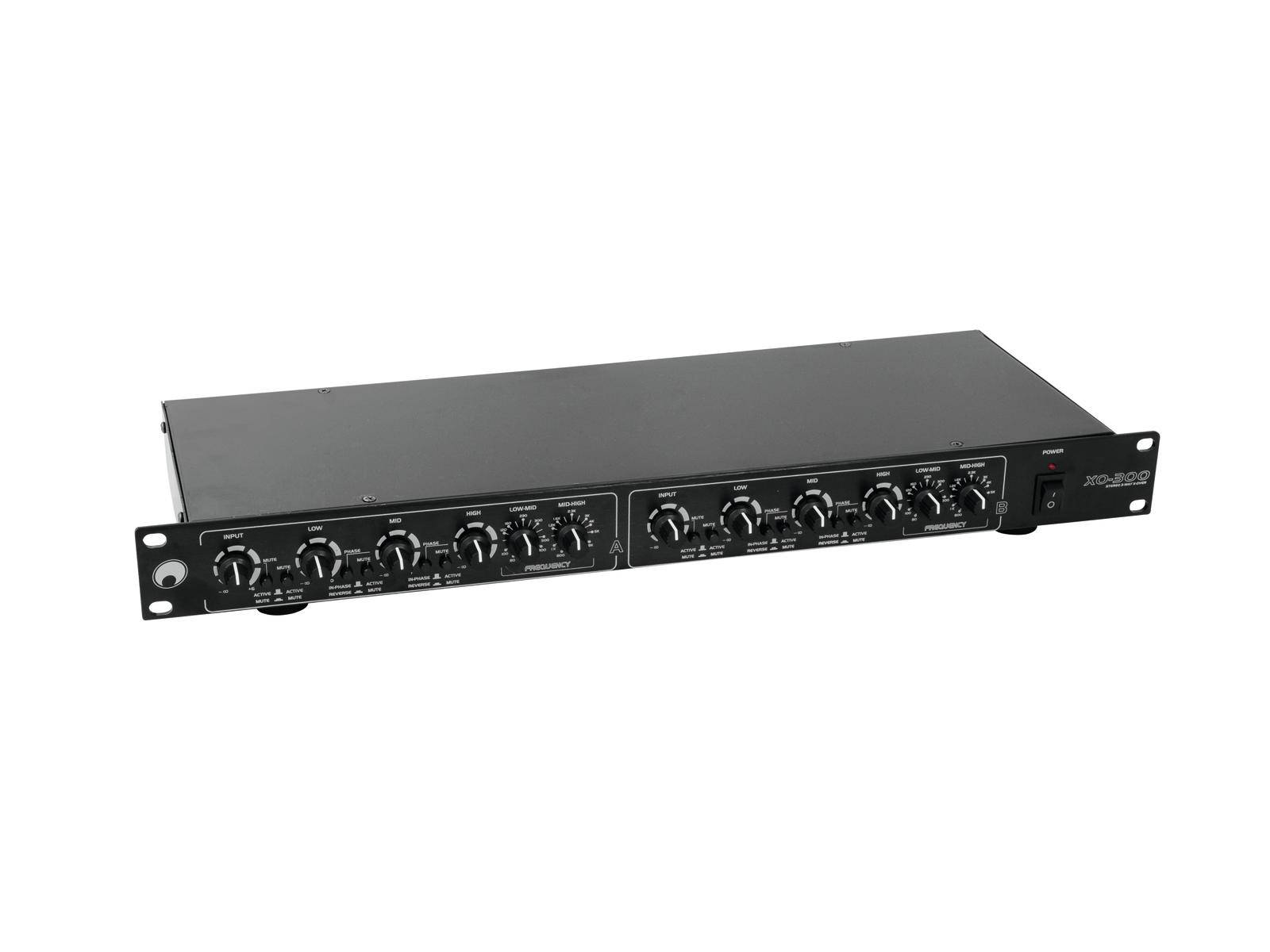

The Omnitronic XO-300 is a 3-way triaxial frequency crossover built for professional audio systems. Designed for standard 19-inch rack installations, it delivers precise signal distribution for multi-driver loudspeakers. Key Features & Design * 3-way frequency crossover for tri-axial loudspeakers, routing signals to low, mid, and high-frequency drivers * 19-inch rack-mountable design for seamless integration into standard professional rigs * High-quality signal path preserves clarity and minimizes crosstalk between frequency bands * Durable construction built for demanding environments such as touring, clubs, and venues * Plug-and-play installation with straightforward wiring for quick setup and reliable performance Performance / Benefits By separating the audio signal into dedicated low, mid, and high bands, the XO-300 helps you achieve a cleaner, more balanced sound from tri-axial systems. This results in tighter bass, clearer mids, and crisper highs, while reducing driver strain and improving overall system control. The rugged, rack-ready design ensures dependable performance in both live and installed applications, making it a practical choice for professional audio deployments.
Uitvoering
3-weg stereo-functie
24 dB flanksteilheid/octaaf
Uitgangsniveau voor elk frequentiebereik afzonderlijk regelbaar
Scheidingsfrequentie Low/Mid en Mid/High regelbaar
Mute-functie voor ingangssignaal en elke frequentiebereik afzonderlijk schakelbaar
CD-hoorn-EQ voor hoogtecorrectie inschakelbaar
Faseverhouding Mid en High omschakelbaar
Ingangsniveau regelbaar

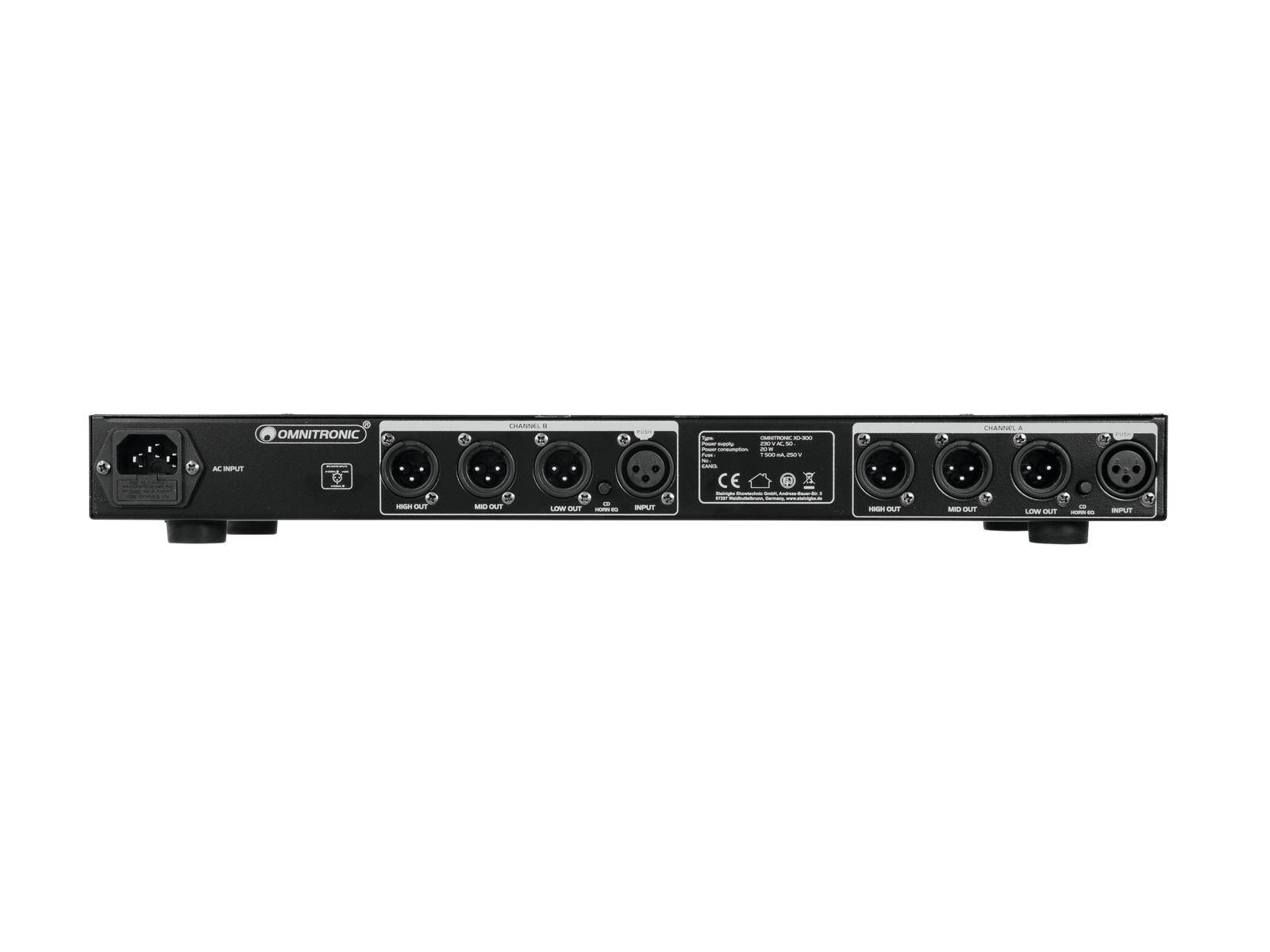

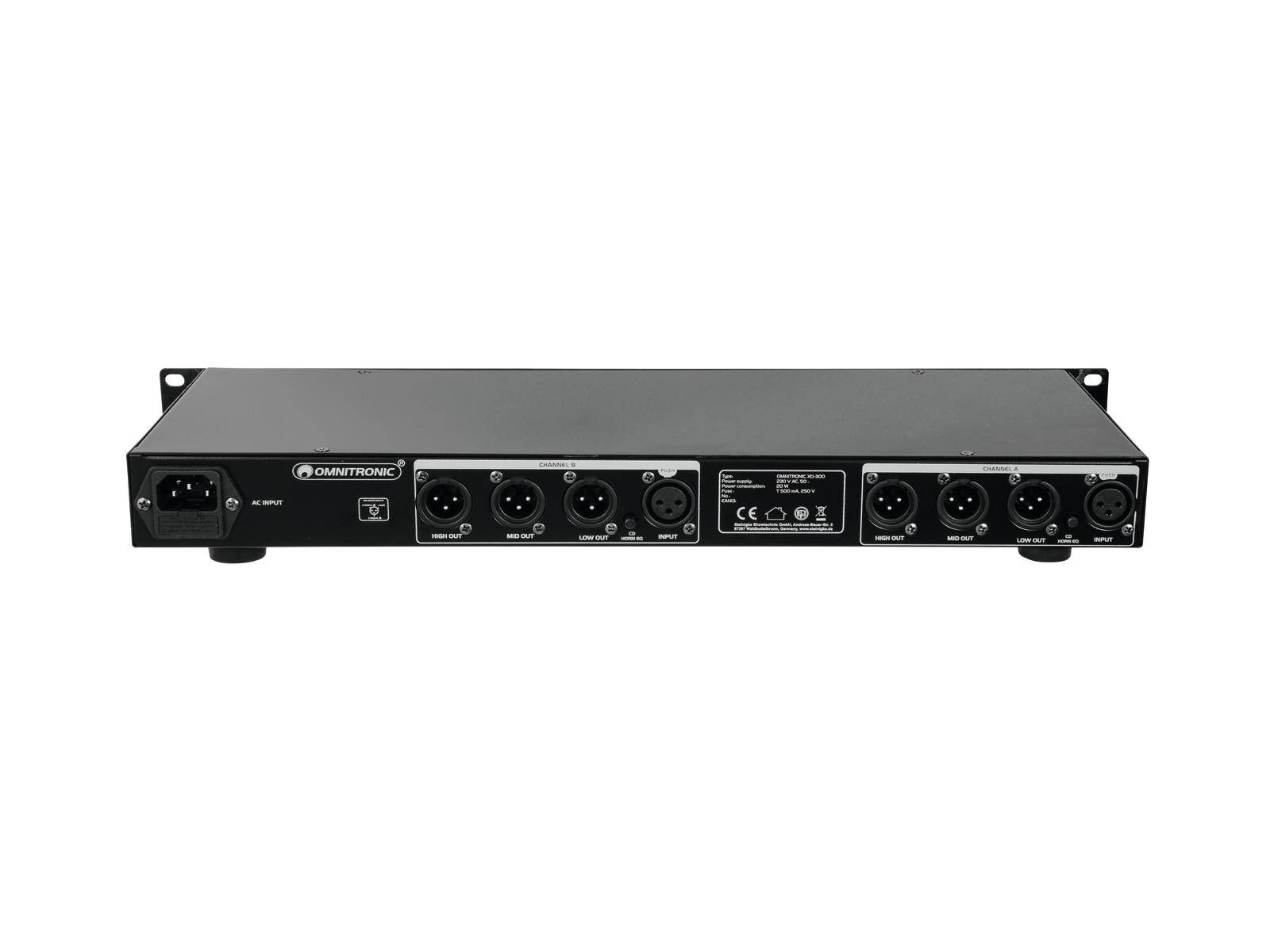

Alle aansluitingen via XLR-bussen
Rack-inbouw, 1 HE
Omschrijving
The Omnitronic XO-300 is a 3-way triaxial frequency crossover built for professional audio systems. Designed for standard 19-inch rack installations, it delivers precise signal distribution for multi-driver loudspeakers. Key Features & Design * 3-way frequency crossover for tri-axial loudspeakers, routing signals to low, mid, and high-frequency drivers * 19-inch rack-mountable design for seamless integration into standard professional rigs * High-quality signal path preserves clarity and minimizes crosstalk between frequency bands * Durable construction built for demanding environments such as touring, clubs, and venues * Plug-and-play installation with straightforward wiring for quick setup and reliable performance Performance / Benefits By separating the audio signal into dedicated low, mid, and high bands, the XO-300 helps you achieve a cleaner, more balanced sound from tri-axial systems. This results in tighter bass, clearer mids, and crisper highs, while reducing driver strain and improving overall system control. The rugged, rack-ready design ensures dependable performance in both live and installed applications, making it a practical choice for professional audio deployments.
Uitvoering
3-weg stereo-functie
24 dB flanksteilheid/octaaf
Uitgangsniveau voor elk frequentiebereik afzonderlijk regelbaar
Scheidingsfrequentie Low/Mid en Mid/High regelbaar
Mute-functie voor ingangssignaal en elke frequentiebereik afzonderlijk schakelbaar
