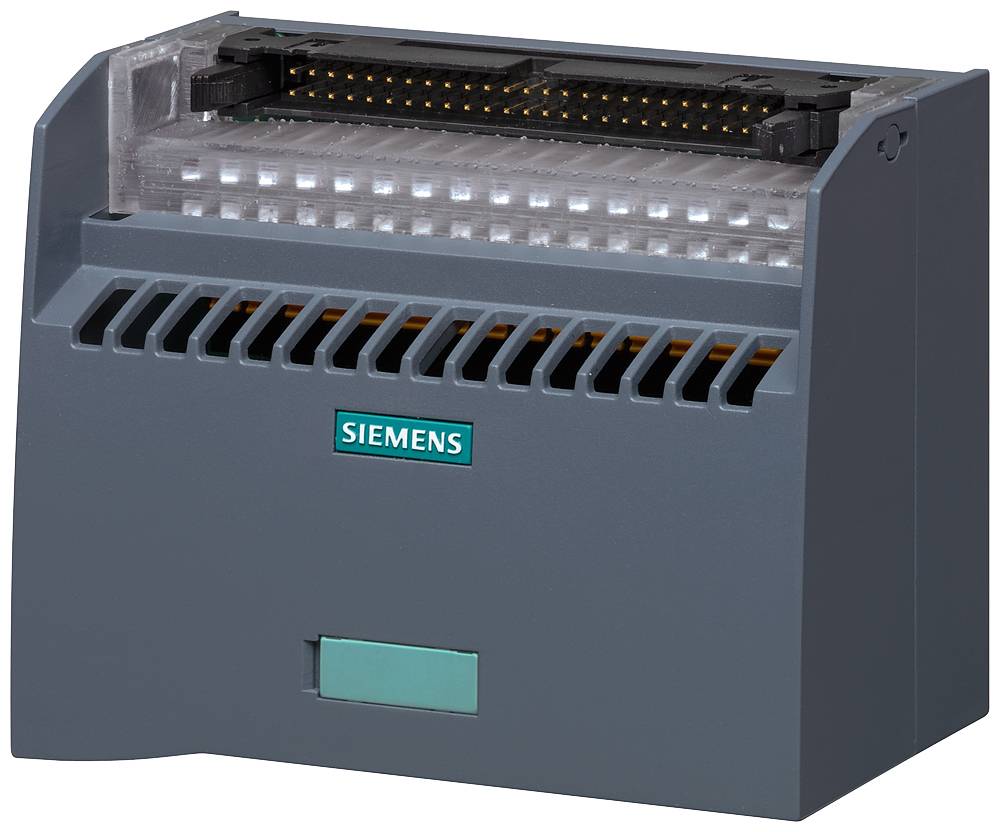

Siemens 6ES79242AK200BC0 6ES7924-2AK20-0BC0 PLC-aansluitmodule

Connection module TP1 DI-M read 32 channels a. 4x2 terminals f. Potential supply Type: Push-in terminal with LED, VPE = 1 unit 50 pole IDC connector f. cable The connection module TP1 DI sourcing input for a 1-wire connection with 32 channels and potential connection with push-in terminals with LED for signaling forms the interface between the connection lines of the I/O brought in from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, it is precisely adapted to the task at hand. This connection module is part of the fully modular SIMATIC TOP connect for the fastest and safest system cabling. In addition to a low wiring effort, sources of error during cabling can be significantly reduced. Sensors and actuators from the I/O are connected to the SIMATIC TOP connect terminal modules and are connected with the SIMATIC S7-1500 via the connecting cable and front connector module.
