Delock 47042 PCI Express kaart M.2 PCIe

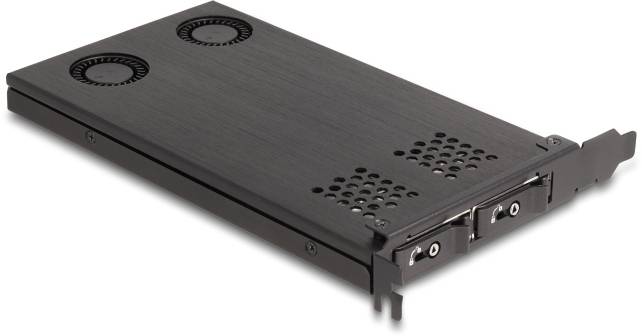

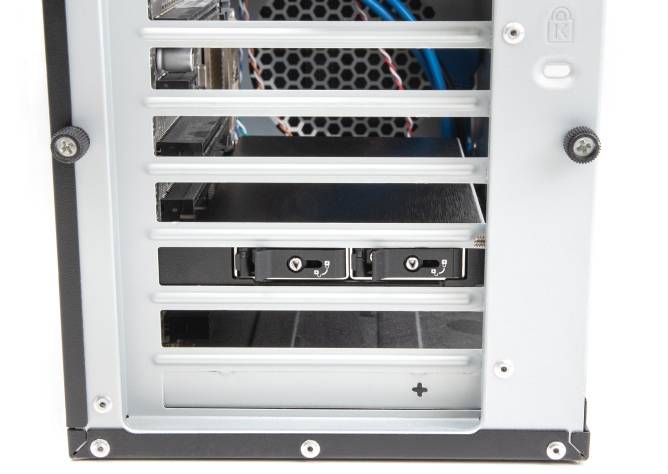

Description This mobile rack by Delock can be installed into a PC slot of the computer and provides two M.2 slots in 2280, 2260, 2242 or 2230 format.

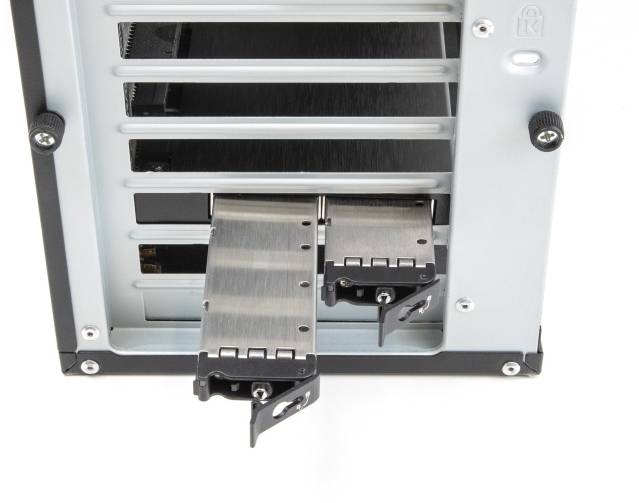

Quick change of SSD

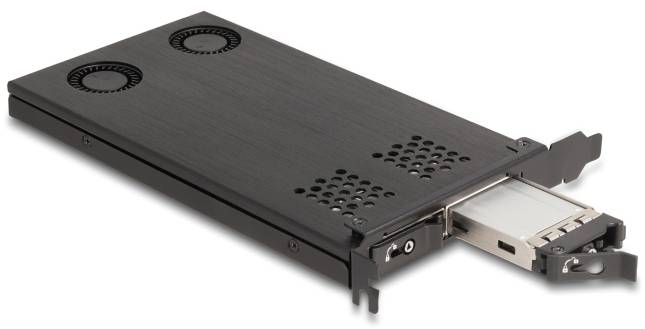

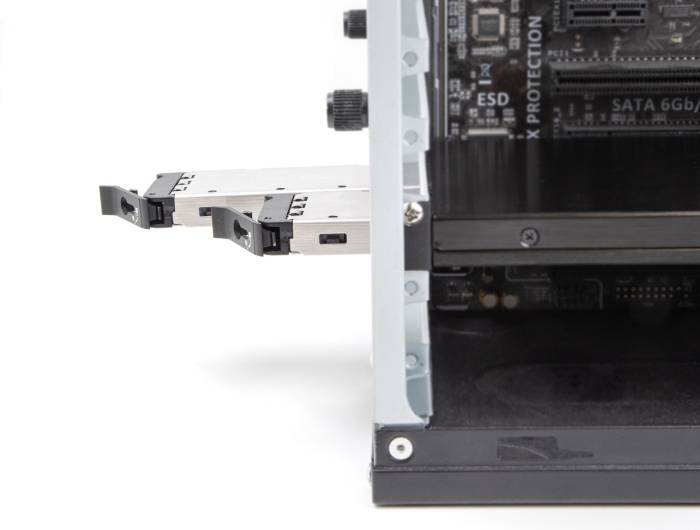

Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.


The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations and therefore support its use in mobile devices.

Note
Special care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established.
Without PCIe bifurcation only the first M.2 slot of the card can be used. Specification • Connectors:
PCIe card:

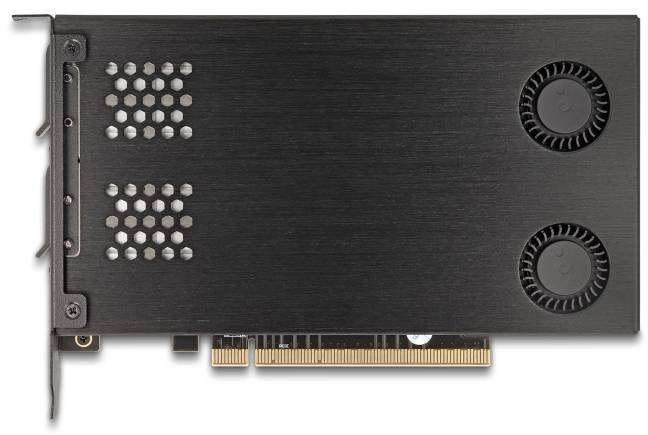

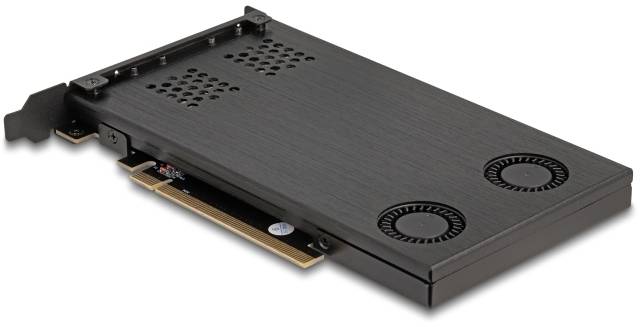

1 x PCI Express x16, V4.0
2 x M.2 key M slot
M.2 tray:
1 x M.2 key M male
1 x M.2 key M slot
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• 2 x fan
• 2 x LED indicator
• Bootable, ex UEFI version 2.3.1
• M.2 tray made of metal
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Operating temperature: -40 °C ~ 85 °C System requirements • Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x16 / x32 slot Package content • Mobile Rack with 2 x M.2 tray
• Heat sink

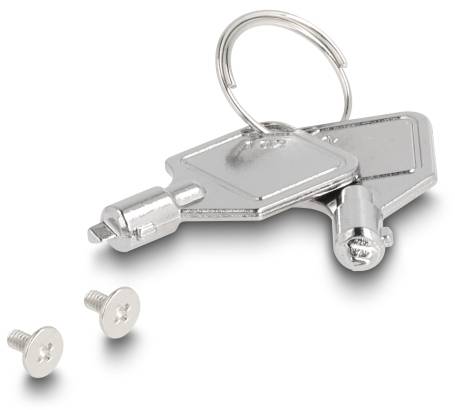

• 2 x screw IM 2.0 x 4.0 mm, head 5.0 mm
• 2 x keys
• User manual
