Delock 89051 PCI Express kaart SATA PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Aantal
Totaal (€ 123,96 / Stuk)
€ 123,96
excl. btw
Gratis verzending*
Incl. 14 dagen retourrecht
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- SATA, intern
4
- RAID-modus
0
- Chipset
Marvell
- Kenmerken
Geschikt voor RAID
- Aansluitingen (uitgang)
SATA
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Data transfer snelheid (max)
6 Gbit/s
- Bedrijfstemperatuur (T-T)
0 - 50 °C
- Luchtvochtigheid bij opslag
0 - 90 %
- S.M.A.R.T. support
Ja
- Relatieve vochtigheid in bedrijf (V-V)
0 - 90 %
- NCQ (Native command queuing)
Ja
- Temperatuur bij opslag
-10 - 65 °C
- TRIM support
Ja
Documenten en downloads
Datablad
Datablad 3380223 Delock 89051 PCI Express kaart SATA PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3380223 Delock 89051 PCI Express kaart SATA PCIe
Omschrijving

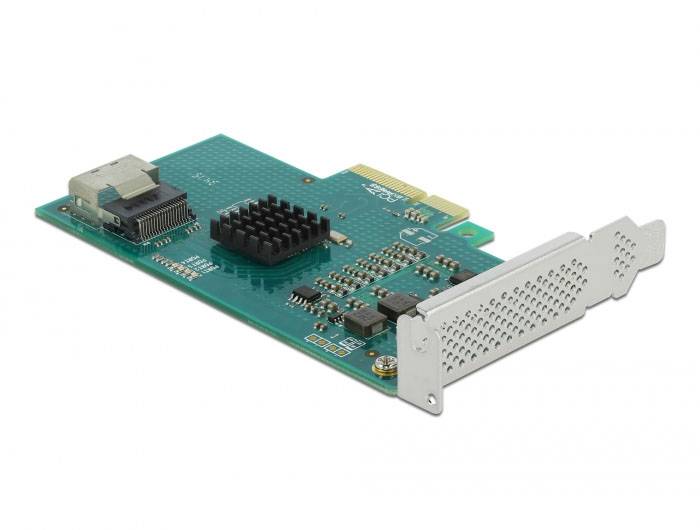

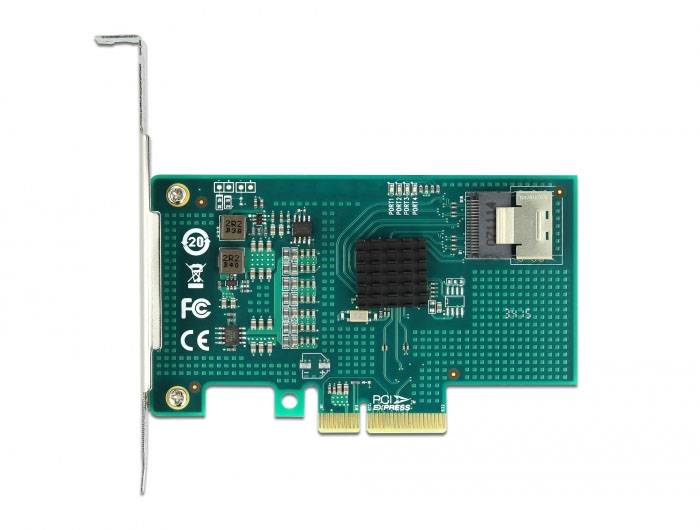

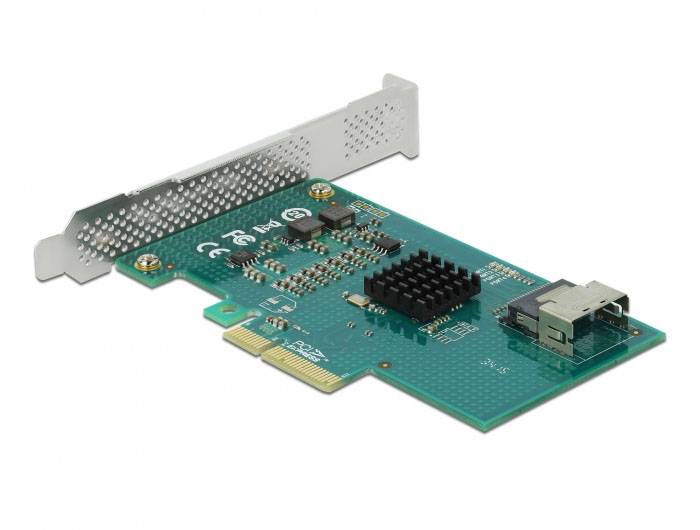

Description The PCI Express card by Delock expands a PC by four internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.
RAID and HyperDuo function
The card supports a HyperDuo function. With this function an SSD and an HDD will be combined to use the advantages of both data mediums. The speed of a SSD and the capacity of a HDD. The card also supports the common RAID 0, RAID 1 and RAID 10. Specification • Connectors:
1 x SFF-8087 female
1 x PCI Express x4, V2.0
• Chipset: Marvell 88SE9230
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, RAID 1, RAID 10, JBOD, Port Multiplier, HyperDuo
• Supports HDD and SSD
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Supports Serial ATA AHCI
• Bootable
• 4 x LED indicator
• Humidity: 0 ~ 90 %
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -10 °C ~ 65 °C System requirements • Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card
• Low profile bracket

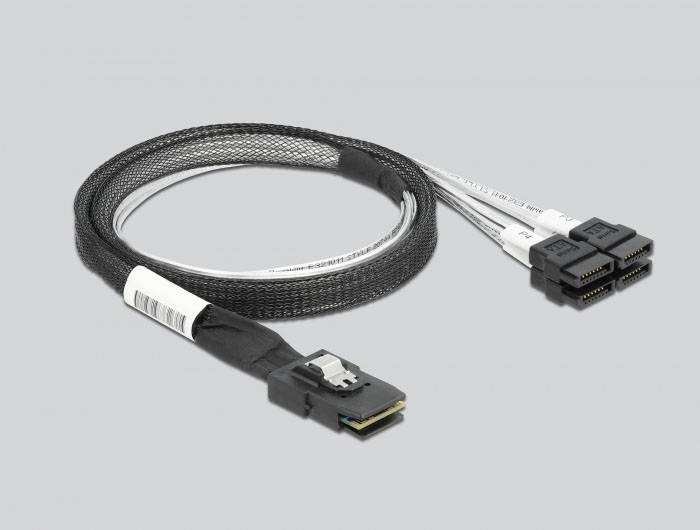

• Cable SFF-8087 male to 4 x SATA receptacle, length ca. 80 cm
• User manual
