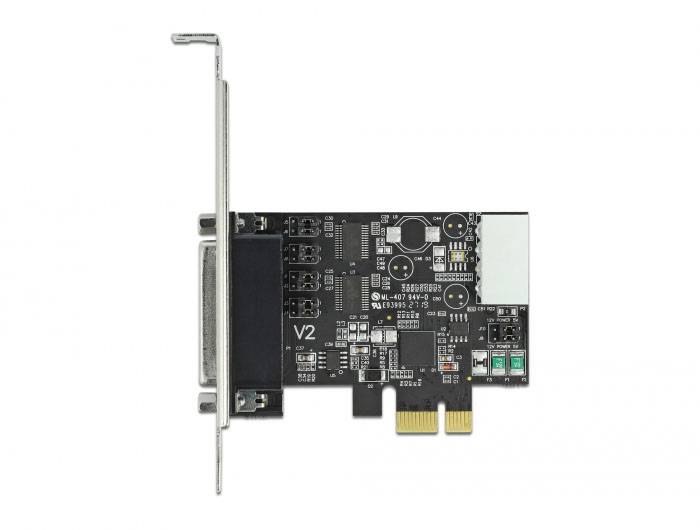

Delock 89909 PCI Express kaart RS232 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Aantal
Totaal (€ 44,62 / Stuk)
€ 44,62
excl. btw
Gratis verzending*
Incl. 14 dagen retourrecht
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal serieel
2 x
- Kenmerken
Incl. Low-Profile slotplaat
- Aansluitingen (uitgang)
RS232
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Zwart
- Aansluiting A
PCIe
- Display (inch)
24 inch
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Seriële poort(en)
2
- Aantal
1
- Intern
Ja
- Baud snelheid
230.4 Kbit/s
Documenten en downloads
Datablad
Datablad 3379720 Delock 89909 PCI Express kaart RS232 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379720 Delock 89909 PCI Express kaart RS232 PCIe
Omschrijving
Description The PCI Express card by Delock expands a PC by two external serial ports.
Optional voltage supplies via RS-232
Connected devices can optionally be supplied with voltages of 5 V or 12 V. The following four outputs are available on the RS-232 ports: pin 1 (DCD), pin 4 (DTR), pin 8 (CTS) and pin 9 (RI).
Low Profile Form Factor

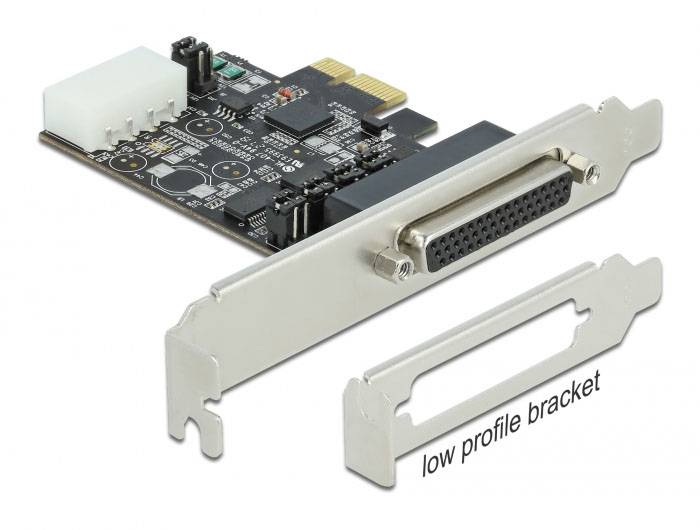

By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC. Specification • Connectors:
internal:

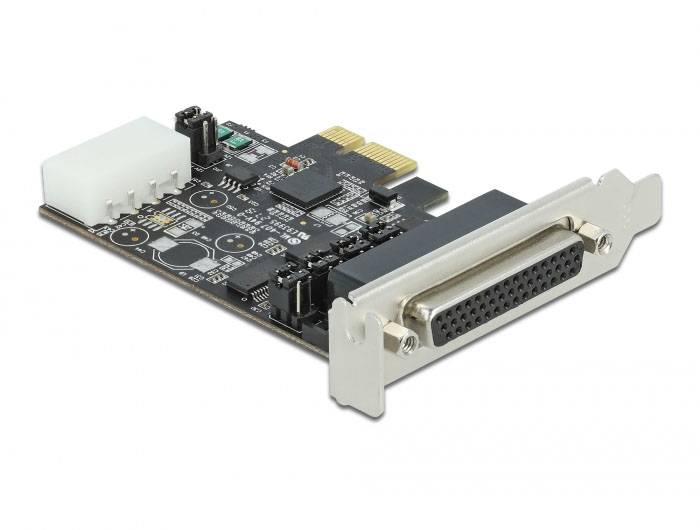

1 x PCI Express x1, V2.0
1 x power connector 4 pin Molex male
external:
1 x DB44 female

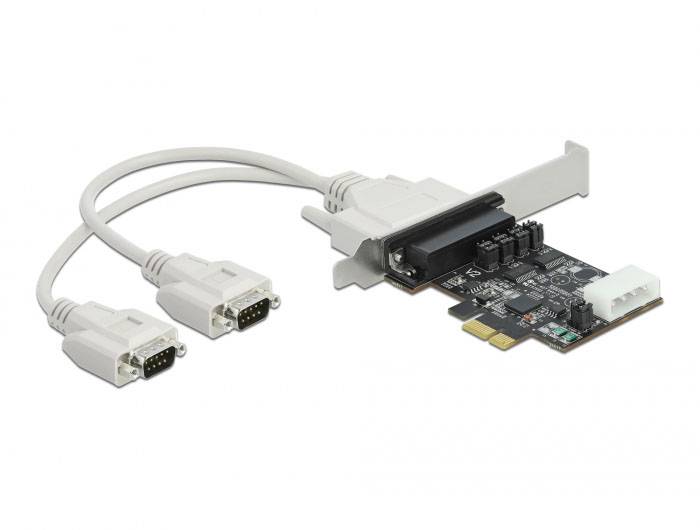

connecting cable: DB44 male > 2 x serial RS-232 DB9 male
• Chipset: MaxLinear 17V352
• Compatible with 16C550 UART
• Data transfer rate up to 230.4 Kbps
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• FIFO: 256 byte
• ±15 kV ESD protection on all signal pins
• 5 V or 12 V can be set individually for each port through the jumper (Pin 1/4/8/9)
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Electrical power per port: max. 18 watt (12 V / 1.5 A)
• I/O address and IRQ assigned by BIOS
• Dimensions (LxW): ca. 80 x 55 mm System requirements • Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
• Power supply with a free Molex power connector Package content • PCI Express card
• Low profile bracket
• 1 x serial connecting cable (ca. 30 cm)
• Driver CD
• User manual
