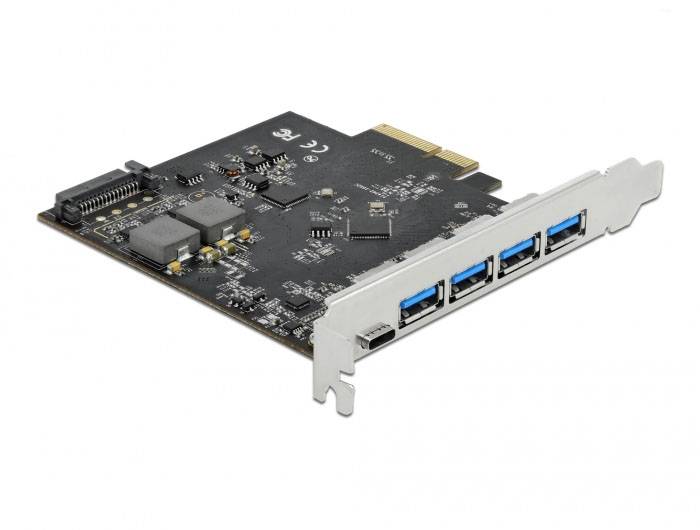

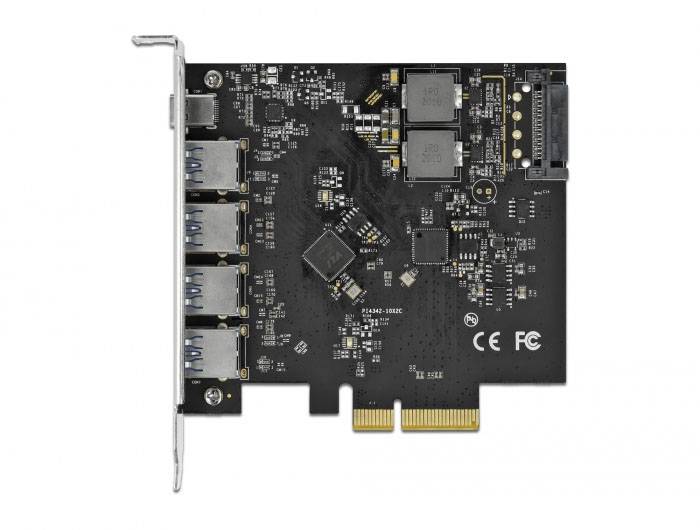

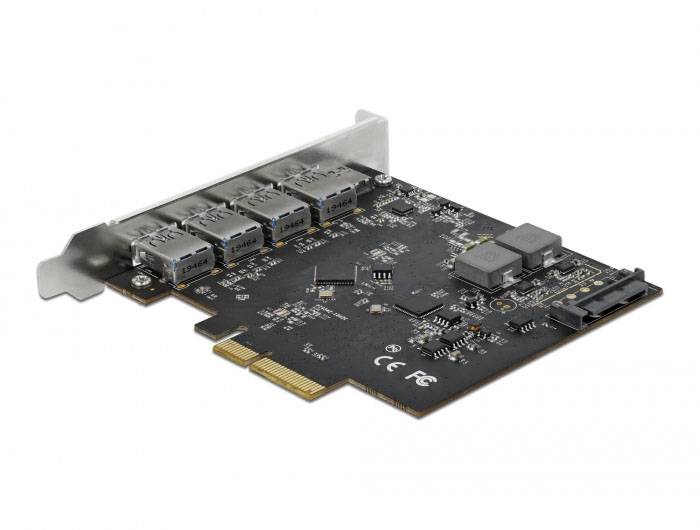

Delock 89026 PCI Express kaart USB-A 3.2 Gen 2 PCIe
Datasheet (PDF)
EAN:
Fabrikantnummer:
Artikelnummer:
Aantal
Totaal (€ 89,99 / Stuk)
€ 89,99
incl. btw
Gratis verzending*
Incl. 14 dagen retourrecht
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal USB-poorten 3.1
4 x
- Aantal USB-poorten 3.1 extern
5 x
- Stroomverzorging
SATA
- Chipset
ASMedia
- Kenmerken
Bootable
- Aansluitingen (uitgang)
USB-A 3.2 Gen 2
- Model
Rond
- Kabellengte
0 cm
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Aantal USB type A 3.1 / 3.2 Gen 2
4 x
- Aantal USB 3.1
1 x
- Toetsenbordlayout
QWERTZ, Duits
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Data transfer snelheid (max)
10 Gbit/s
- Bedrijfstemperatuur (T-T)
5 - 50 °C
- Aantal
1
- UASP-ondersteuning
Ja
- Intern
Ja
- Gebruikershandleiding
Ja
- Relatieve vochtigheid in bedrijf (V-V)
20 - 80 %
- Temperatuur bij opslag
-20 - 60 °C
Documenten en downloads
Datablad
Datablad 3379114 Delock 89026 PCI Express kaart USB-A 3.2 Gen 2 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379114 Delock 89026 PCI Express kaart USB-A 3.2 Gen 2 PCIe
Omschrijving
Description This PCI Express card by Delock expands the PC by five external USB 3.2 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Sufficient ports - 1 x USB Type-C™ and 4 x USB Type-A
The PCIe card offers one USB-C™ port as well as four USB Type-A ports. Thus devices can be connected with 10 Gbps at each port. Specification • Connectors:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
internal:
1 x PCI Express x4 (2-Lane), V3.0
1 x SATA 15 pin power connector
• Chipset: Asmedia ASM3142, VIA VL822
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via SATA power connector
• Electrical power:
USB Type-C™: max. 15 watt (5 V / 3 A)
USB Type-A: max. 4.5 watt (5 V / 0.9 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -20 °C ~ 60 °C
• Humidity: 20 ~ 80 % System requirements • Linux Kernel 3.18.37 or above
• Windows 10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card SuperSpeed USB 10 Gbps
• User manual
Sufficient ports - 1 x USB Type-C™ and 4 x USB Type-A
The PCIe card offers one USB-C™ port as well as four USB Type-A ports. Thus devices can be connected with 10 Gbps at each port. Specification • Connectors:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
internal:
1 x PCI Express x4 (2-Lane), V3.0
1 x SATA 15 pin power connector
• Chipset: Asmedia ASM3142, VIA VL822
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via SATA power connector
• Electrical power:
USB Type-C™: max. 15 watt (5 V / 3 A)
USB Type-A: max. 4.5 watt (5 V / 0.9 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -20 °C ~ 60 °C
• Humidity: 20 ~ 80 % System requirements • Linux Kernel 3.18.37 or above
• Windows 10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card SuperSpeed USB 10 Gbps
• User manual
