Delock 89837 PCI Express kaart M.2 PCIe

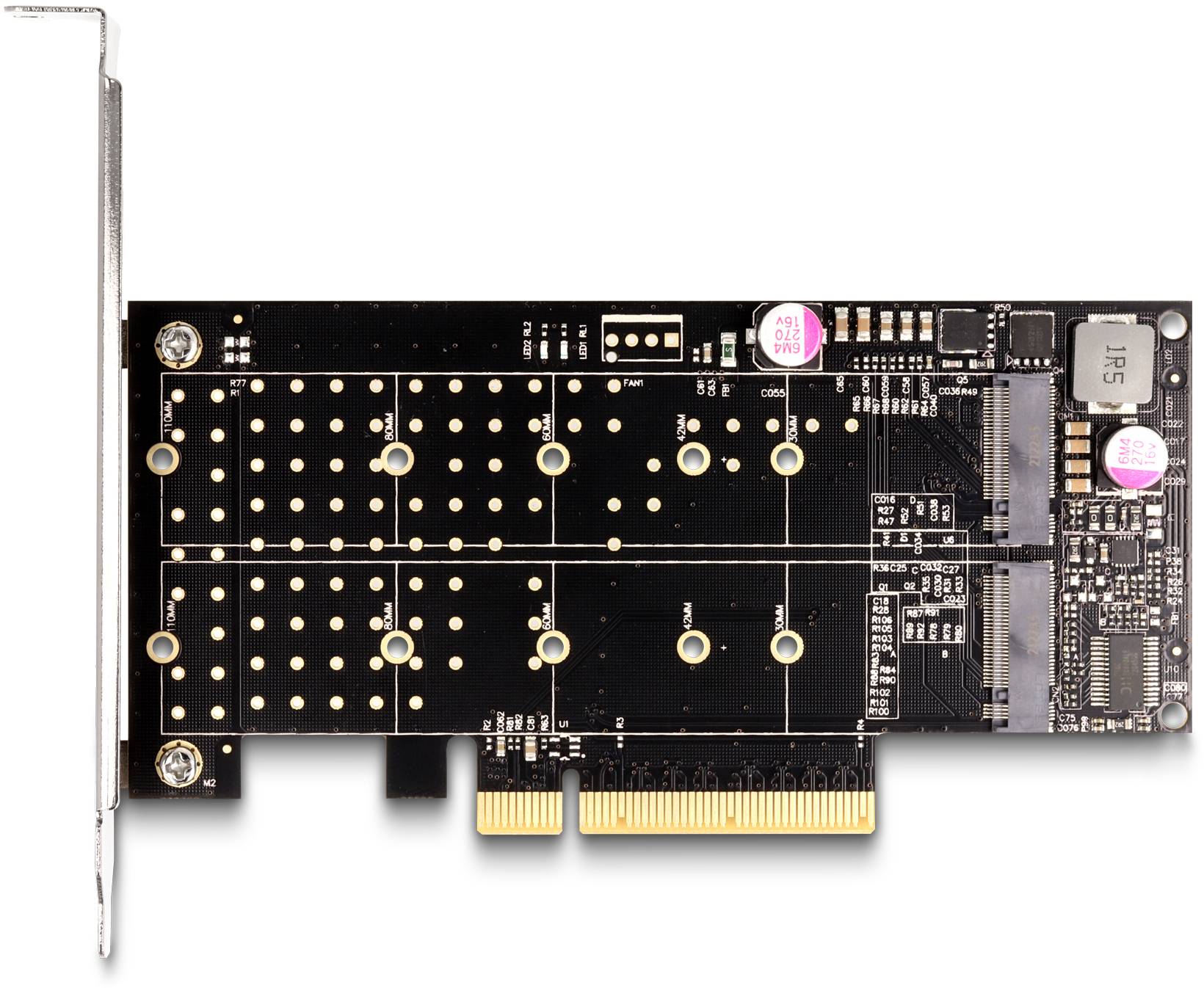

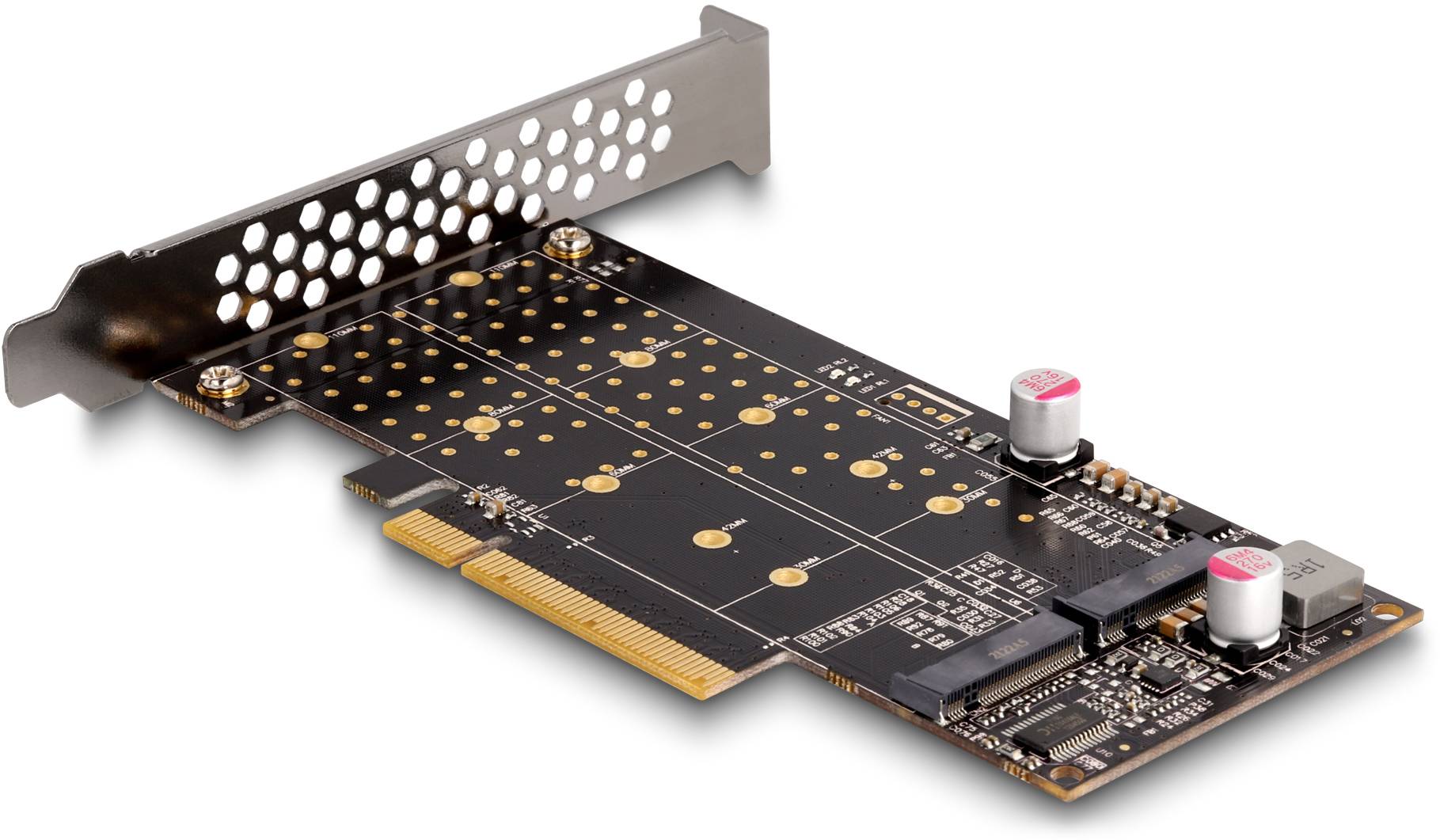

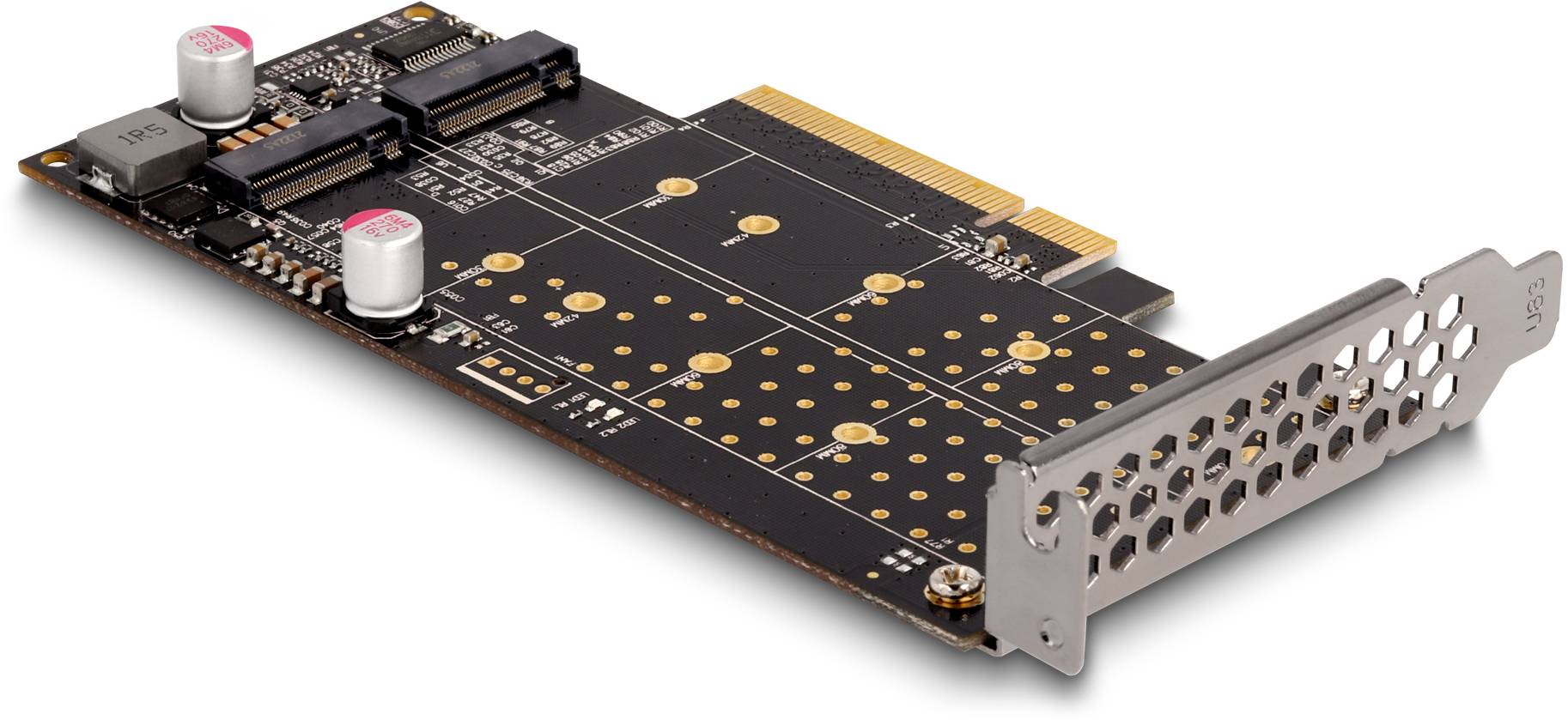

Description This PCI Express card by Delock expands the PC by two M.2 slots. M.2 SSDs in format 22110, 2280, 2260, 2242 and 2230 can be connected. The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple slots with M.2 SSDs.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used. Specification • Connectors:
internal:
2 x 67 pin M.2 key M slot
1 x PCI Express x8, V4.0
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• 2 x LED indicator
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM System requirements • Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free PCI Express x8 / x16 / x32 slot

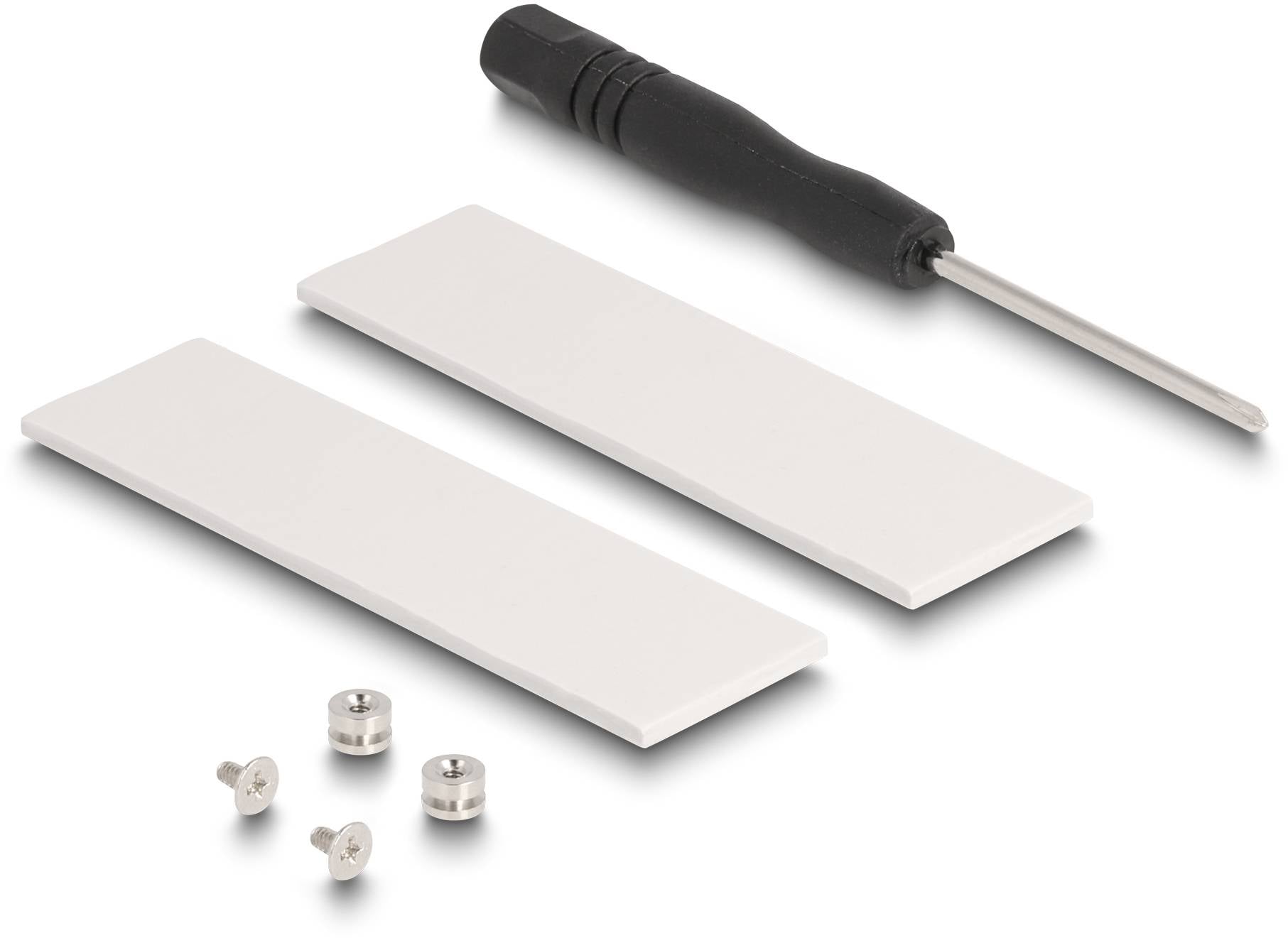

• Motherboard and BIOS with PCIe bifurcation support Package content • PCI Express card
• Low profile bracket
• Screwdriver
• Mounting material
• 2 x thermal conductive pad
• User manual
