Delock 90617 PCI Express kaart M.2 PCIe

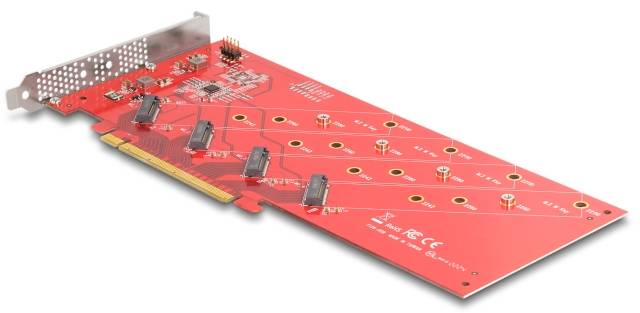

Description This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 22110, 2280, 2260 and 2242 can be connected.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used. Specification • Connectors:
internal:

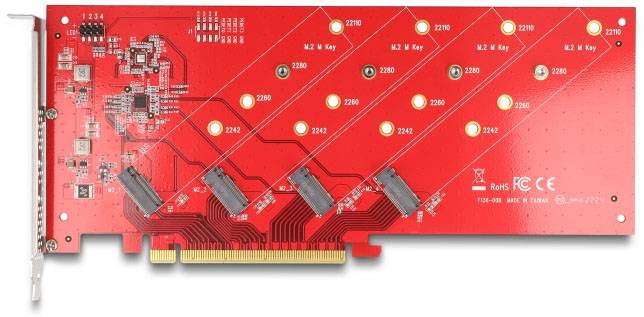

4 x M.2 key M slot
1 x PCI Express x16, V4.0
4 x 2 pin pin header for LED
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM System requirements • Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support Package content • PCI Express card
• 4 x screw
• User manual
