Delock 95274 M.2-controller RJ45 Serieel

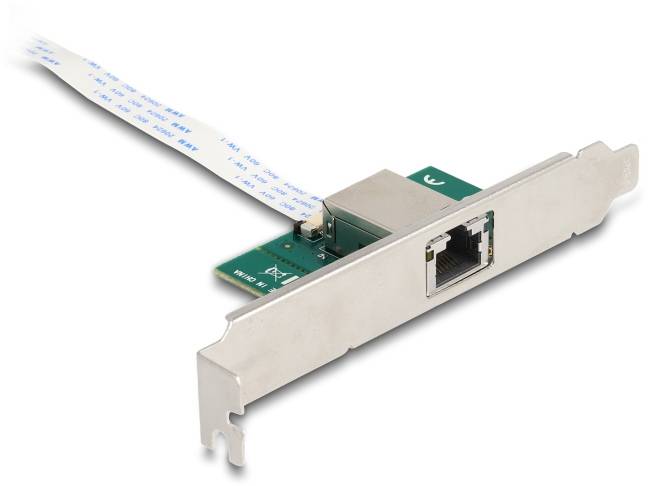

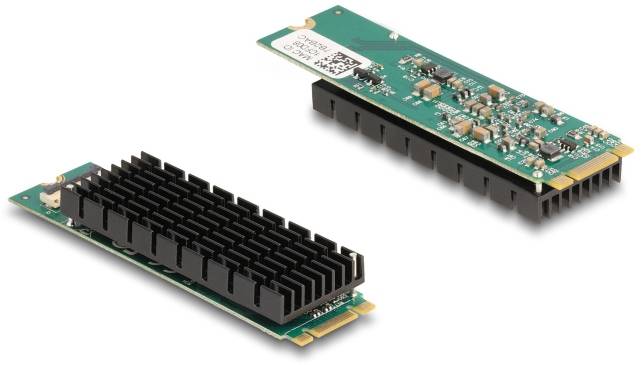

Description This M.2 PCIe module by Delock expands a system by one 10 Gigabit LAN interface, which can be lead out via the slot bracket.

NBASE-T for higher speed
With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows higher transmission rates than 1 Gbps, when a 10 Gbps connection is not possible with the existing cable. Specification • Connectors:
internal: 1 x 59 pin M.2 key B+M male
external: 1 x 10 Gigabit LAN RJ45 jack
• Chipset: Aquantia AQC107
• Interface: PCIe x4 Rev. 3.0
• Form factor: M.2 2280
• Suitable for M.2 slot with key M or B+M based on PCIe
• Data transfer rate:
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
PCI Express x4 up to 32 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports PXE
• Supports Wake On LAN (WOL)
• Supports 16k Jumbo Frames
• LED indicator for link and activity
• Cable length with connectors: ca. 20 cm System requirements • Windows 10/10-64/11
• A free M.2 key M slot
• PC with one free slot Package content • Converter
• Connecting cable
• Slot bracket
• Low profile bracket
• User manual
