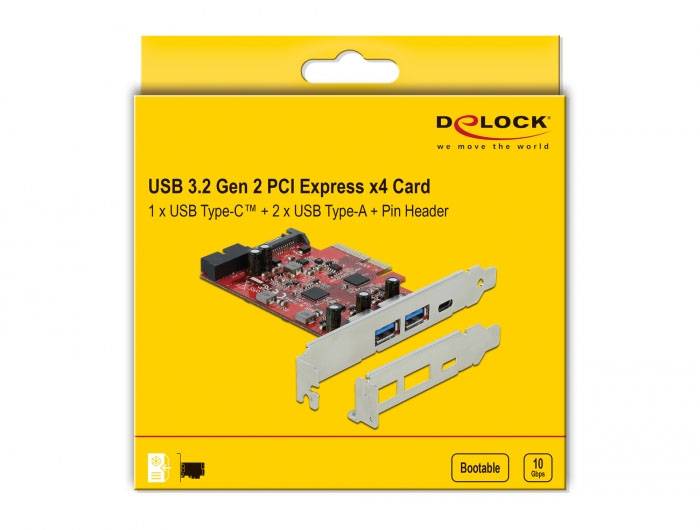

Delock 90492 PCI Express kaart USB-A 3.2 Gen 1, USB-A 3.2 Gen 2 PCIe

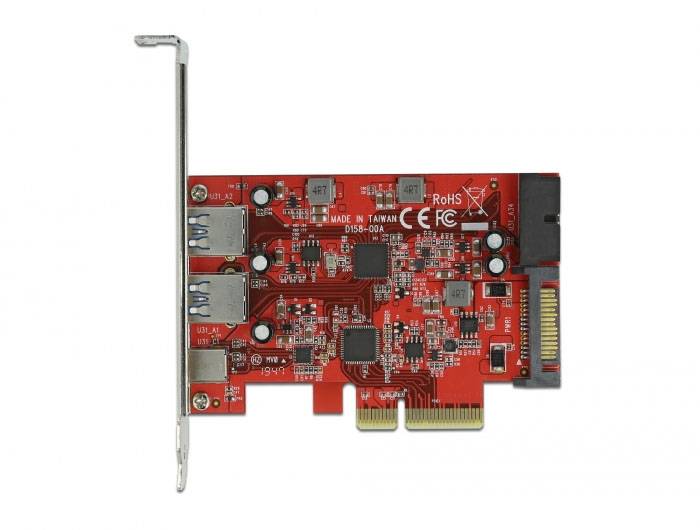

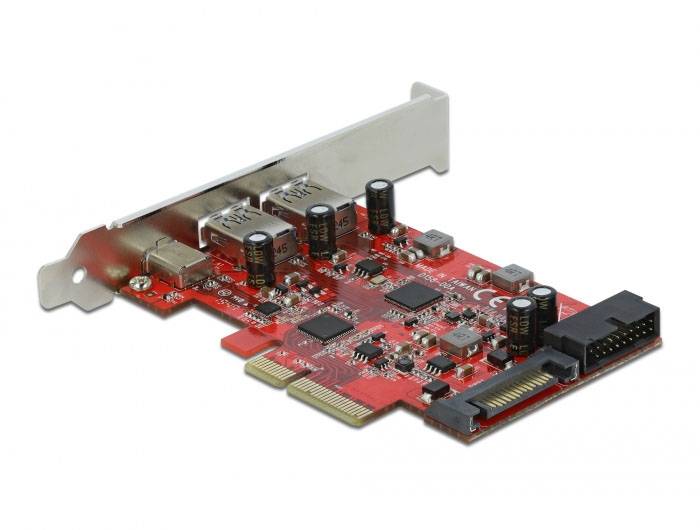

Description This PCI Express card by Delock expands the PC by three external USB ports as well as one internal pin header. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Data transfer rate 5 Gbps internal and 10 Gbps external
The card allows a data transfer rate of 10 Gbps on the external ports, as well as 5 Gbps on the internal pin header. Specification • Connectors:
external:
1 x USB 10 Gbps USB Type-C™ female
2 x USB 10 Gbps Type-A female
internal:
1 x 19 pin USB 5 Gbps pin header male
1 x SATA 15 pin power connector
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142, Genesys Logic GL3590
• Data transfer rate up to 10 Gbps
• Bootable
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port:
USB Type-C™: max. 15 watt (5 V / 3 A)
USB Type-A: max. 10 watt (5 V / 2 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP System requirements • Linux Kernel 3.12 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card SuperSpeed USB 10 Gbps

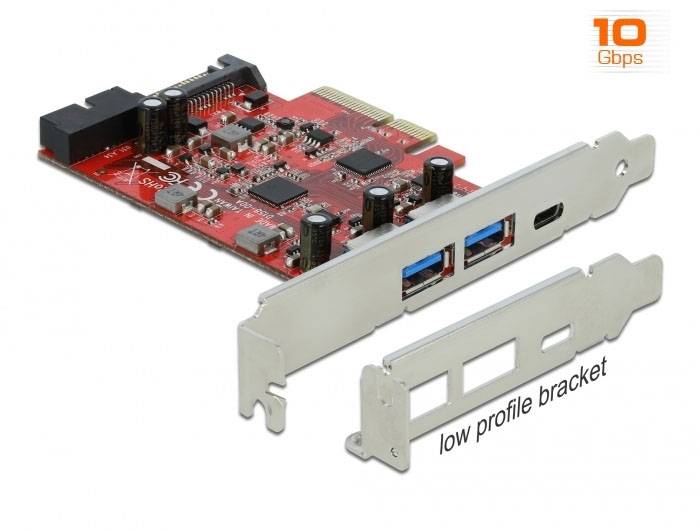

• Low profile bracket
• User manual
